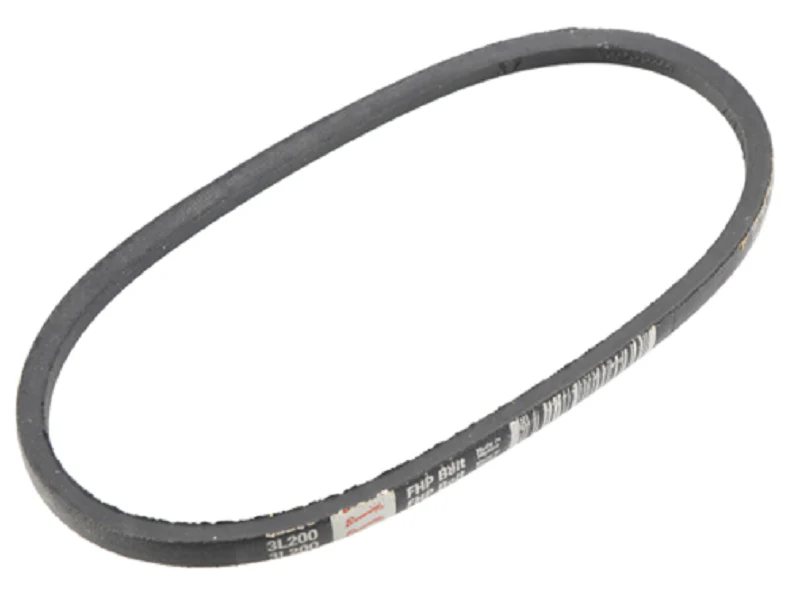

Browning 3L200 Belt
The Browning 3L200 Belt is a heavy-duty fractional horsepower V-belt specifically engineered for light-duty industrial and commercial HVACR applications. Designed with a 3L section profile, this belt features a 3/8" top width and a 7/32" thickness, optimized for high-speed transmission in small diameter sheaves where traditional belts often fail due to excessive heat or stiffness. With a 20" outside diameter (OD) and a 19.3" pitch length, the 3L200 ensures precise fitment for blowers, fans, and small motor drives found in residential and light commercial units.
Constructed using oil and heat-resistant rubber compounds, the Browning 3L200 utilizes a wrapped construction that allows for smoother, quieter operation and increased tolerance to slight sheave misalignment compared to raw-edge alternatives. The internal polyester cord reinforcement is specifically balanced to handle the stresses of frequent starts and stops while maintaining dimensional stability. For any technician performing routine maintenance or emergency repairs, verifying the RMA standard compliance of this 3L series belt is essential for ensuring efficient power transfer and reducing vibration in sensitive air-handling equipment.
Key Benefits
- Optimized Flexibility: Formulated for maximum bend-ability, making it ideal for the small sheave applications common in fractional HP motors.
- Durability in Harsh Environments: The wrapped cover protects the internal cords from abrasive dust, oil, and heat, extending the life of the drive components.
- Noise Reduction: The smooth, fabric-wrapped exterior reduces belt-to-pulley friction noise, a critical factor in indoor air handling units.
- Slip Tolerance: High-grip rubber compound and wrapped design provide better slip resistance during high-torque startup conditions.
Common Questions
- What is the difference between a 3L200 and a 3V belt? While both have a 3/8" top width, 3L belts are fractional horsepower (FHP) rated for lighter loads, whereas 3V belts are part of the narrow wedge series designed for higher horsepower density. They are not interchangeable.
- How do I measure for a replacement if the label is missing? Measure the outside circumference of the belt. For a 3L200, the total outer loop should measure exactly 20 inches.
- Can this belt handle high-temperature rooftops? Yes, the Browning 3L series is manufactured to withstand standard operational heat, though maintaining proper tension is vital to prevent additional heat buildup from friction.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $9.56
-65%$9.56
$3.35Browning 3L200 Belt
The Browning 3L200 Belt is a heavy-duty fractional horsepower V-belt specifically engineered for light-duty industrial and commercial HVACR applications. Designed with a 3L section profile, this belt features a 3/8" top width and a 7/32" thickness, optimized for high-speed transmission in small diameter sheaves where traditional belts often fail due to excessive heat or stiffness. With a 20" outside diameter (OD) and a 19.3" pitch length, the 3L200 ensures precise fitment for blowers, fans, and small motor drives found in residential and light commercial units.
Constructed using oil and heat-resistant rubber compounds, the Browning 3L200 utilizes a wrapped construction that allows for smoother, quieter operation and increased tolerance to slight sheave misalignment compared to raw-edge alternatives. The internal polyester cord reinforcement is specifically balanced to handle the stresses of frequent starts and stops while maintaining dimensional stability. For any technician performing routine maintenance or emergency repairs, verifying the RMA standard compliance of this 3L series belt is essential for ensuring efficient power transfer and reducing vibration in sensitive air-handling equipment.
Key Benefits
- Optimized Flexibility: Formulated for maximum bend-ability, making it ideal for the small sheave applications common in fractional HP motors.
- Durability in Harsh Environments: The wrapped cover protects the internal cords from abrasive dust, oil, and heat, extending the life of the drive components.
- Noise Reduction: The smooth, fabric-wrapped exterior reduces belt-to-pulley friction noise, a critical factor in indoor air handling units.
- Slip Tolerance: High-grip rubber compound and wrapped design provide better slip resistance during high-torque startup conditions.
Common Questions
- What is the difference between a 3L200 and a 3V belt? While both have a 3/8" top width, 3L belts are fractional horsepower (FHP) rated for lighter loads, whereas 3V belts are part of the narrow wedge series designed for higher horsepower density. They are not interchangeable.
- How do I measure for a replacement if the label is missing? Measure the outside circumference of the belt. For a 3L200, the total outer loop should measure exactly 20 inches.
- Can this belt handle high-temperature rooftops? Yes, the Browning 3L series is manufactured to withstand standard operational heat, though maintaining proper tension is vital to prevent additional heat buildup from friction.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
