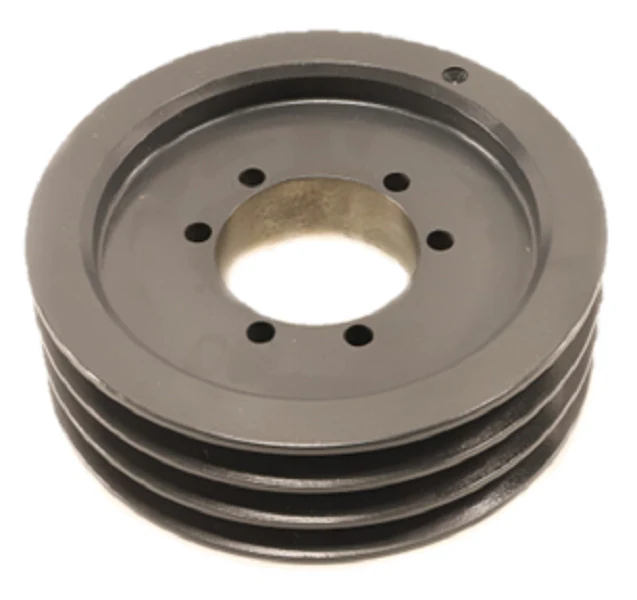

Browning 3B74SK Sheave
The Browning 3B74SK Sheave is a high-performance three-groove Q-D sheave engineered for reliable power transmission in industrial HVACR systems. Constructed from close-grain cast iron, this 7.75" outside diameter component is designed for use with A and B series belts (4L and 5L), maintaining precise tolerances to minimize vibration and extend belt life. The SK series bushing compatibility allows for a broad bore range from 0.5" to 2.625", offering significant flexibility for shaft mounting in the field. By utilizing a combination groove design, this B/5L section pulley enables contractors to run multiple belt profiles within the same system, optimizing torque transfer and horsepower ratings. The quick detachable (Q-D) configuration ensures rapid installation and simplifies maintenance during critical blower or motor service intervals. With a 7.0" datum diameter (A) and 7.4" datum diameter (B), this sheave provides the rigid, split-taper grip required for high-torque applications.
Key Benefits- Multi-Belt Compatibility: Features combination grooves that accept both A and B series V-belts, reducing inventory requirements for service contractors.
- Robust Construction: Machined from close-grain cast iron with a black oxide finish for superior durability and corrosion resistance in mechanical rooms.
- Efficient Maintenance: The Q-D (Quick Detachable) sheave design uses SK series bushings to provide a secure, concentric fit on the shaft while allowing for easy removal.
- Optimized Performance: Precision balanced to ensure smooth operation at high RPMs, reducing wear on HVAC blower motors and bearings.
What is the difference between datum diameter and outside diameter for the 3B74SK?
The Browning 3B74SK has an outside diameter (O.D.) of 7.75". However, the datum diameter—which is the effective measurement for speed calculations—is 7.0" when used with A belts and 7.4" when used with B belts.
Does this sheave include the SK bushing?
No, Q-D sheaves are sold separately from the bushings. You must select an SK series bushing that matches your specific motor or fan shaft diameter to complete the assembly.
Can I use this for high-speed HVAC applications?
Yes, the 3B74SK cast iron sheave is suitable for standard HVAC power transmission and conveying systems. Its three-groove design provides the necessary surface area to prevent belt slippage under heavy loads.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
