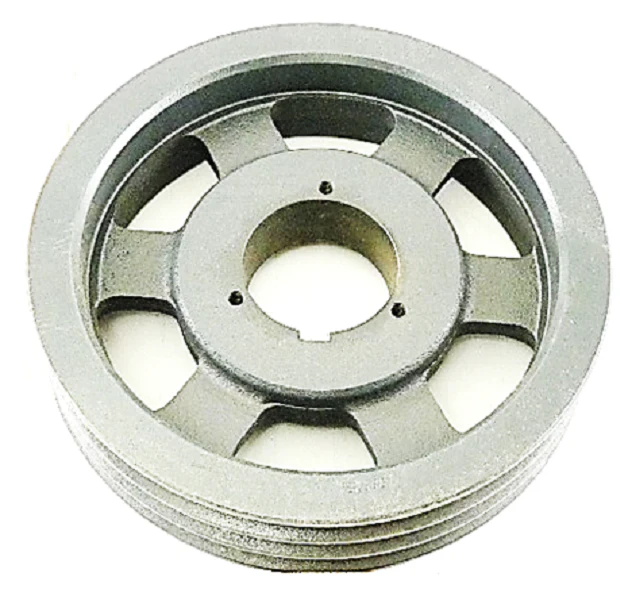

Browning 3B5V94 Sheave
The Browning 3B5V94 Sheave is a precision-engineered three groove B5V gripbelt sheave designed for high-capacity power transmission in commercial HVACR and industrial blower applications. Featuring a 9.68" outside diameter, this sheave is manufactured from high-grade cast iron to ensure long-term balance and vibration dampening. It is engineered for use with B Series bushings, providing a secure, split-taper interface that simplifies installation on varying shaft diameters. This versatile drive component is compatible with a wide range of belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts, making it a reliable choice for field replacements where matching existing v-belt drive specifications is critical. The multi-groove design allows for increased torque handling and redundancy in critical air handling systems. By utilizing this Browning 3B5V94, contractors ensure optimal pitch diameter maintenance and reduced belt wear across high-static pressure configurations.
- Multi-Belt Compatibility: Designed to accommodate 4L, A, AX, 5L, B, BX, 5V, and 5VX belt profiles for maximum job site flexibility.
- Precision Machined: Gray cast iron construction minimizes run-out and extends the life of motor bearings and belts.
- B Bushing System: Utilizes the industry-standard B series bushing for easy mounting and precise alignment on the shaft.
- High Torque Capacity: Three-groove configuration distributes the load effectively for heavy-duty fan and pump operations.
Common Questions
What is the effective pitch diameter for the 3B5V94?
The pitch diameter varies slightly based on the belt profile used; for 5V belts, the datum diameter is approximately 9.30", while B belts typically seat at a 9.40" datum.
Which bushing do I need for this sheave?
This sheave requires a B series split taper bushing. Ensure you select the bushing bore size that matches your motor or driven shaft diameter.
Can this sheave be used in high-RPM applications?
Yes, Browning sheaves are balanced for standard industrial speeds, but always verify that your drive's rim speed does not exceed 6,500 feet per minute.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $282.61
-65%$282.61
$98.91Browning 3B5V94 Sheave
