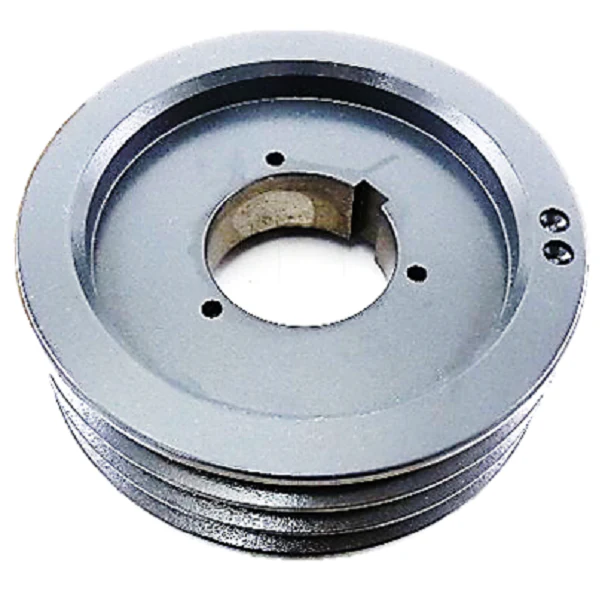

Browning 3B5V70 Sheave
Professional-grade Browning 3B5V70 Sheave is a high-performance power transmission component designed for heavy-duty HVACR and industrial blower applications. This 7.28" Outside Diameter mechanical pulley features a three-channel combination groove design, allowing for maximum drive flexibility. Constructed from high-density close-grain cast iron, the 3B5V70 is engineered to work seamlessly with B series split taper bushings, ensuring a secure, concentric shaft fitment that eliminates high-vibration issues in multi-belt systems.
The specialized B5V Gripbelt sheave geometry is optimized for versatility, supporting 5V and 5VX belts alongside A, AX, B, and BX series V-belts. This technical capability allows contractors to satisfy varying horsepower requirements and pitch diameter needs without switching hardware. By utilizing Browning split taper technology, the sheave provides a true key-to-key drive, distributing torque efficiently through the hub and shaft while maintaining precise alignment. For technicians managing variable load commercial air handlers or pump drives, the robust cast iron construction and precision balancing of the 3B5V70 pulley ensure stable performance and reduced belt wear in demanding environments.
Key Benefits- Multi-Section Belt Compatibility: The combination groove accommodates 4L, 5L, A, B, and 5V belt profiles, reducing inventory complexity for field service.
- Split Taper Bushing Interface: Engineered specifically for B Series Bushings, providing superior torque transmission and easy removal from the shaft.
- Industrial Cast Iron Housing: Built with high-tensile material to withstand continuous operation in commercial HVAC and ventilation systems.
- Optimized Drive Stability: Three-groove configuration allows for balanced load distribution across multiple belts to prevent slippage and premature fail points.
Which bushing is compatible with the 3B5V70?
This sheave is designed exclusively for use with B Series split taper bushings. The specific bore size depends on your motor or fan shaft diameter.
Can I mix different belt types in the three grooves?
While the combination groove supports multiple belt types (A, B, or 5V), all belts used in a single drive setup must be of the same type and of a matched set to ensure uniform tension and load sharing.
What is the difference between Datum and Outside Diameter for this part?
The 7.28" Outside Diameter is the total physical measurement, whereas the datum diameters vary by belt type: 6.6" for A-belts and 7.0" for B-belts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
