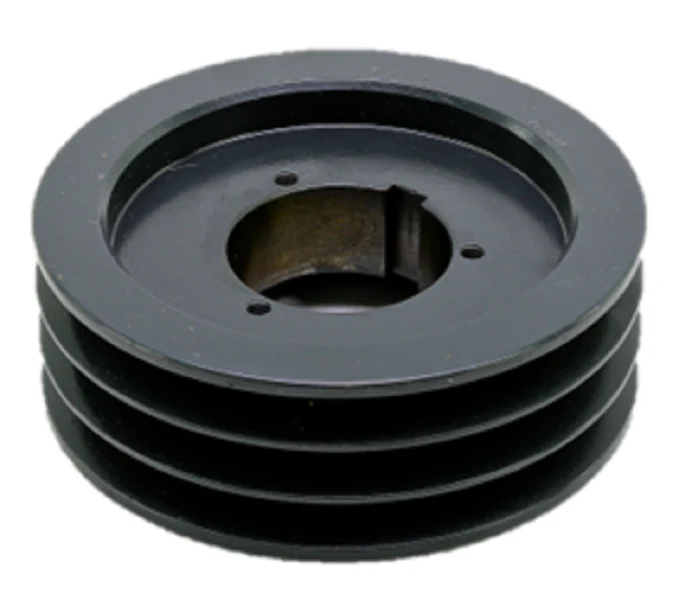

Browning 3B5V68 Sheave
The Browning 3B5V68 Sheave is a high-performance triple groove gripbelt sheave engineered for demanding HVACR power transmission systems. Featuring a 7.08" outside diameter, this component is designed for use with B series bushings, ensuring a secure and precise fit on the drive shaft. Built for versatility, the 3B5V68 is compatible with a wide range of belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. This flexibility makes it a standard choice for contractors managing air handlers, cooling towers, and industrial blowers where multi-groove configurations are required to handle higher horsepower loads. To ensure optimal drive ratio accuracy and minimize vibration, the sheave is balanced to industrial standards. When replacing worn pulleys, the Browning 3B5V68 provides the necessary rigidity and pitch diameter consistency to maintain efficiency and reduce belt wear in high-duty cycle environments.
- Multi-Belt Compatibility: Engineered to accept a variety of belt cross-sections including 5V, 5VX, and B series for maximum application flexibility.
- Three-Groove Design: Facilitates increased power transmission capability by distributing the load across three belts, reducing individual belt stress.
- B Series Bushing Integration: Utilizes the reliable B series split taper or QD bushing system for easy installation and high torque capacity.
- Precision Machined: Constructed from high-grade cast iron to maintain dimensional stability and thermal resistance under heavy mechanical loads.
Common Questions
What is the pitch diameter of the Browning 3B5V68 when using 5V belts?
When utilizing 5V or 5VX belts, the datum diameter is 6.75", while the effective outside diameter remains 7.08" to ensure proper belt seating and tensioning.
Which bushing is required for this 3-groove sheave?
This sheave requires a B series bushing. Please select the specific bore size that matches your motor or fan shaft diameter to ensure a proper mechanical fit.
Can this sheave be used with both wrapped and cogged belts?
Yes, the groove geometry is optimized for both standard wrapped belts (B, 5V) and high-efficiency cogged versions (BX, 5VX) to allow for drive customization.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $210.75
-65%$210.75
$73.76Browning 3B5V68 Sheave
