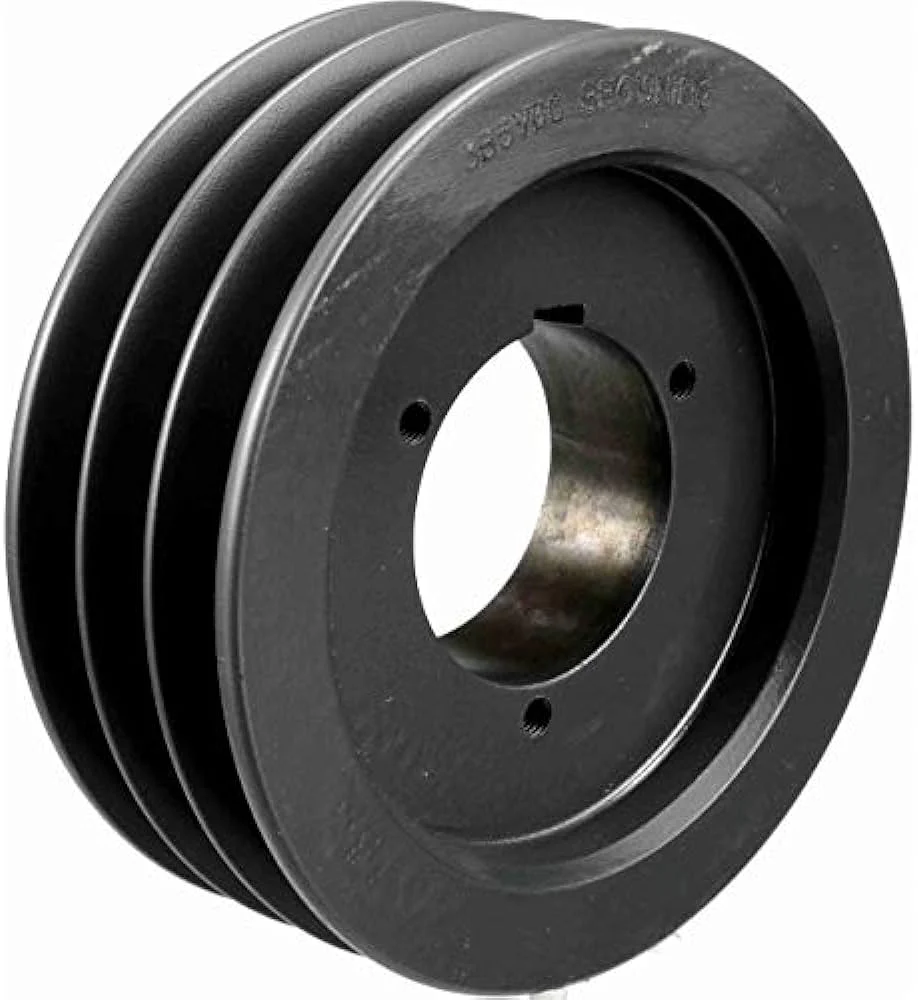

Browning 3B5V66 Sheave
The Browning 3B5V66 Sheave is a high-performance, three-groove power transmission component engineered for heavy-duty HVACR and industrial applications. This 6.88" Outside Diameter sheave features the advanced B5V Gripbelt design, utilizing a combination groove profile that provides unmatched versatility by accommodating 4L, A, AX, 5L, B, BX, 5V, and 5VX belts in a single unit. Constructed from high-grain cast iron and precision-machined using CAD and Finite Element Analysis, this sheave ensures optimal material distribution for maximum strength-to-weight ratios and reduced vibration.
Designed for use with B Series Split Taper Bushings, the 3B5V66 facilitates a secure key-to-key drive between the shaft and the hub, preventing torque loads from stressing the cap screws. This system provides a broad horsepower range, typically covering 5 to 125 HP drive requirements. With a 6.9" B-belt pitch diameter and 6.7" 5V-belt pitch diameter, this fixed-pitch pulley is a reliable solution for technicians looking to simplify inventory while maintaining high-torque capacity in critical mechanical systems.
Key Benefits:- Universal Compatibility: The 3-groove design supports multiple belt sections, including A/B classical and 5V narrow wedge belts.
- Reduced Vibration: Precision-balanced cast iron construction extends the life of motor bearings and driven equipment.
- Reliable Mounting: Designed for B Series bushings to ensure concentricity and a slip-free connection.
- Enhanced Efficiency: CAD-optimized casting removes unnecessary mass without compromising structural integrity.
- What belts are compatible with the Browning 3B5V66? It accepts A, AX, B, BX, 5V, and 5VX belt profiles, as well as 4L and 5L light-duty belts.
- Which bushing do I need for this sheave? It specifically requires a B Series Split Taper Bushing (sold separately) to match your specific shaft size.
- Can this be used with banded belts? No, due to the specific groove spacing of the B5V series, it is not recommended for use with banded belt sets.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $205.97
-65%$205.97
$72.09Browning 3B5V66 Sheave
The Browning 3B5V66 Sheave is a high-performance, three-groove power transmission component engineered for heavy-duty HVACR and industrial applications. This 6.88" Outside Diameter sheave features the advanced B5V Gripbelt design, utilizing a combination groove profile that provides unmatched versatility by accommodating 4L, A, AX, 5L, B, BX, 5V, and 5VX belts in a single unit. Constructed from high-grain cast iron and precision-machined using CAD and Finite Element Analysis, this sheave ensures optimal material distribution for maximum strength-to-weight ratios and reduced vibration.
Designed for use with B Series Split Taper Bushings, the 3B5V66 facilitates a secure key-to-key drive between the shaft and the hub, preventing torque loads from stressing the cap screws. This system provides a broad horsepower range, typically covering 5 to 125 HP drive requirements. With a 6.9" B-belt pitch diameter and 6.7" 5V-belt pitch diameter, this fixed-pitch pulley is a reliable solution for technicians looking to simplify inventory while maintaining high-torque capacity in critical mechanical systems.
Key Benefits:- Universal Compatibility: The 3-groove design supports multiple belt sections, including A/B classical and 5V narrow wedge belts.
- Reduced Vibration: Precision-balanced cast iron construction extends the life of motor bearings and driven equipment.
- Reliable Mounting: Designed for B Series bushings to ensure concentricity and a slip-free connection.
- Enhanced Efficiency: CAD-optimized casting removes unnecessary mass without compromising structural integrity.
- What belts are compatible with the Browning 3B5V66? It accepts A, AX, B, BX, 5V, and 5VX belt profiles, as well as 4L and 5L light-duty belts.
- Which bushing do I need for this sheave? It specifically requires a B Series Split Taper Bushing (sold separately) to match your specific shaft size.
- Can this be used with banded belts? No, due to the specific groove spacing of the B5V series, it is not recommended for use with banded belt sets.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
