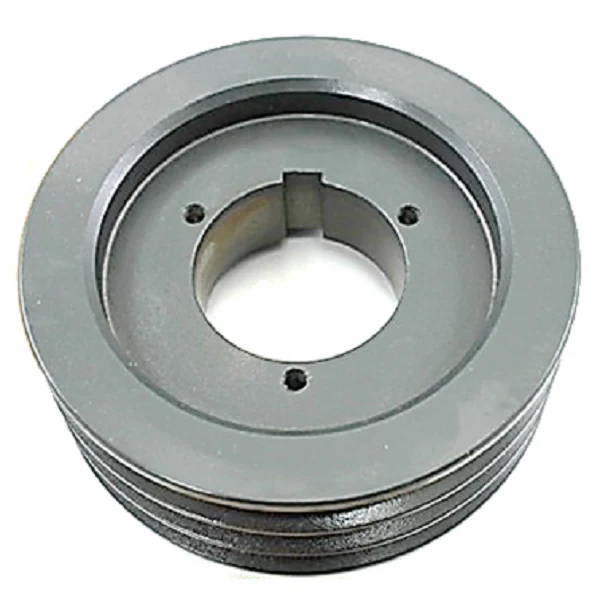

Browning 3B5V64 Sheave
The Browning 3B5V64 Sheave is a precision-engineered three groove B5V gripbelt sheave designed for high-demand HVACR and industrial power transmission. Constructed from high-density cast iron, this 6.68" outside diameter sheave features a versatile combination groove profile, allowing for seamless integration with 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. This multi-belt compatibility provides technicians with broader horsepower coverage and flexible pitch diameter options within a single drive component. Engineered for use with B series split taper bushings, the 3B5V64 utilizes a key-to-key drive system to ensure a secure, concentric fit on the shaft, effectively eliminating the risk of slippage under heavy torque loads. The CAD-refined casting design optimizes material distribution to balance weight and structural integrity, making it an ideal choice for heavy-duty industrial v-belt pulley applications including blowers, fans, and pump systems where vibration reduction and reliable torque handling are critical for system longevity.
- Multi-Belt Versatility: The combination groove design supports multiple belt sections (A, B, 5V), reducing the need for extensive on-site inventory.
- Secure Shaft Attachment: Optimized for B series bushings to provide a true key-to-key drive, preventing hub and shaft wear.
- Heavy-Duty Construction: Manufactured from close-grain cast iron for superior wear resistance and precise tolerance maintenance.
- Optimized Performance: Precision balanced to minimize system vibration in high-RPM HVAC blower and motor assemblies.
Common Questions
Which bushing is required for the 3B5V64?
This sheave requires a B series split taper bushing. The bore size will depend on the specific motor shaft diameter you are mounting to, ranging typically from 1/2" to 2-7/16".
Can I run different belt types in the same sheave?
Yes, the combination groove is specifically designed to accommodate 4L, A, AX, 5L, B, BX, 5V, and 5VX belt profiles, providing significant flexibility for matching existing drive setups.
What is the datum diameter for this sheave?
The datum diameter varies by belt type: it is 6.00" for A belts and 6.40" for B belts, with a 5V pitch diameter of 6.50".
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $201.21
-65%$201.21
$70.42Browning 3B5V64 Sheave
The Browning 3B5V64 Sheave is a precision-engineered three groove B5V gripbelt sheave designed for high-demand HVACR and industrial power transmission. Constructed from high-density cast iron, this 6.68" outside diameter sheave features a versatile combination groove profile, allowing for seamless integration with 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. This multi-belt compatibility provides technicians with broader horsepower coverage and flexible pitch diameter options within a single drive component. Engineered for use with B series split taper bushings, the 3B5V64 utilizes a key-to-key drive system to ensure a secure, concentric fit on the shaft, effectively eliminating the risk of slippage under heavy torque loads. The CAD-refined casting design optimizes material distribution to balance weight and structural integrity, making it an ideal choice for heavy-duty industrial v-belt pulley applications including blowers, fans, and pump systems where vibration reduction and reliable torque handling are critical for system longevity.
- Multi-Belt Versatility: The combination groove design supports multiple belt sections (A, B, 5V), reducing the need for extensive on-site inventory.
- Secure Shaft Attachment: Optimized for B series bushings to provide a true key-to-key drive, preventing hub and shaft wear.
- Heavy-Duty Construction: Manufactured from close-grain cast iron for superior wear resistance and precise tolerance maintenance.
- Optimized Performance: Precision balanced to minimize system vibration in high-RPM HVAC blower and motor assemblies.
Common Questions
Which bushing is required for the 3B5V64?
This sheave requires a B series split taper bushing. The bore size will depend on the specific motor shaft diameter you are mounting to, ranging typically from 1/2" to 2-7/16".
Can I run different belt types in the same sheave?
Yes, the combination groove is specifically designed to accommodate 4L, A, AX, 5L, B, BX, 5V, and 5VX belt profiles, providing significant flexibility for matching existing drive setups.
What is the datum diameter for this sheave?
The datum diameter varies by belt type: it is 6.00" for A belts and 6.40" for B belts, with a 5V pitch diameter of 6.50".
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
