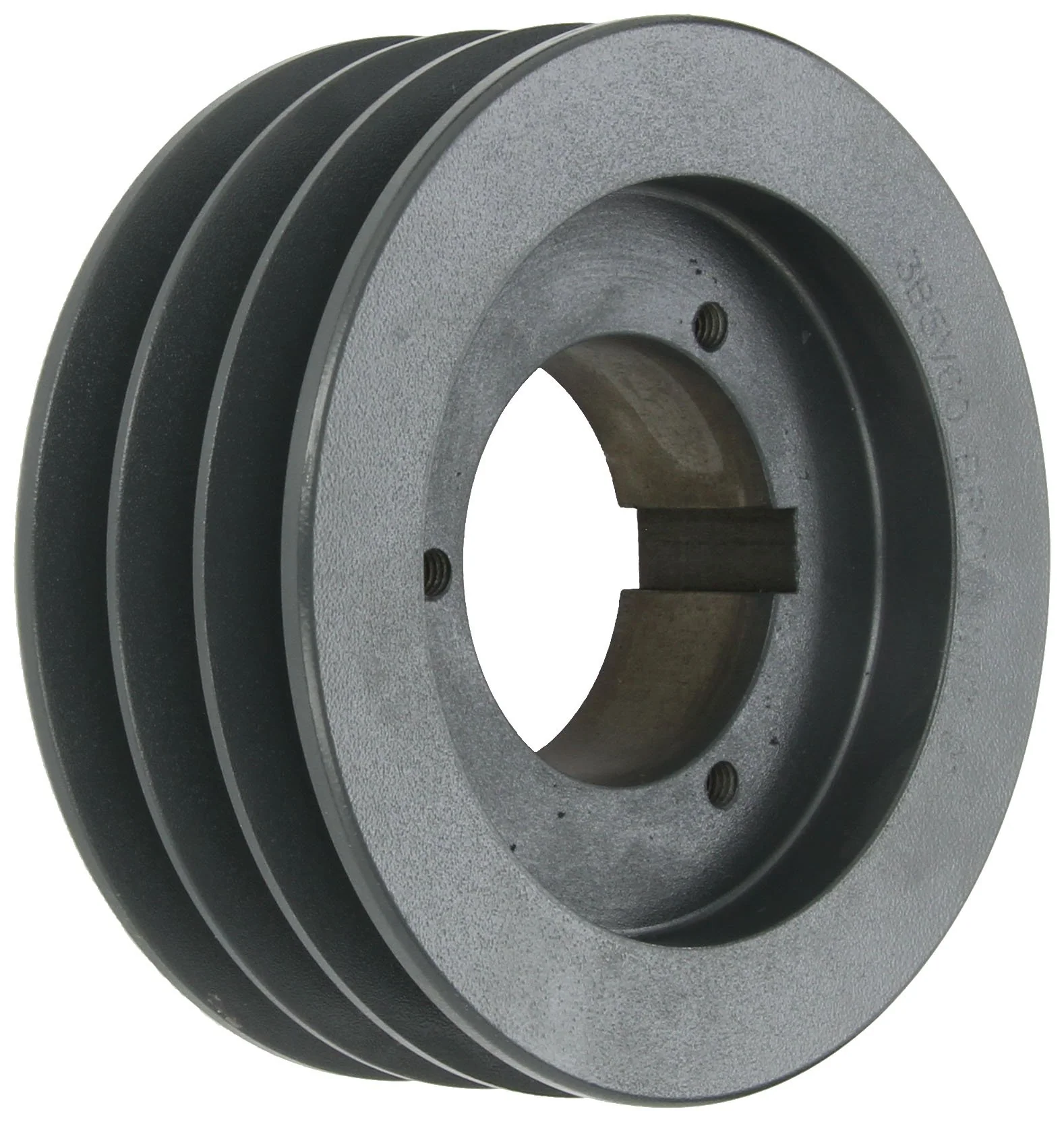

Browning 3B5V60 Sheave
The Browning 3B5V60 Sheave is a precision-engineered three groove B5V Gripbelt sheave designed for high-capacity power transmission in demanding HVACR and industrial blower applications. Featuring a 6.28" outside diameter and a 5.9" pitch diameter, this component is balanced for high-speed operation and reduced vibration. Designed for use with B series bushings, it offers versatile shaft mounting options for various drive configurations. This sheave is engineered to handle multiple belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts, providing the cross-section flexibility necessary for maintenance professionals managing diverse fan and motor setups. The 3B5V60 utilizes a heavy-duty cast iron construction to ensure precise v-belt drive alignment and long-term durability under heavy torque loads. Its multi-groove design allows for increased horsepower capacity without increasing the drive width, making it a critical component for optimizing blower performance and mechanical efficiency in commercial air handling units.
Key Benefits
- Cross-Belt Compatibility: Engineered to accept a wide range of belt sections including A, B, and 5V series for maximum site adaptability.
- Precision Machined: Manufactured from high-grade grey cast iron to ensure concentricity and minimize belt wear.
- High Torque Capacity: The multi-groove sheave design manages higher loads compared to single-groove alternatives in compact spaces.
- Easy Installation: Utilizes standard B split taper bushings for secure, slippage-free mounting on a variety of shaft diameters.
Common Questions
What is the maximum RPM rating for the 3B5V60 sheave?
The maximum rim speed for standard cast iron sheaves is typically 6,500 feet per minute; consult the manufacturer’s dynamic balance specifications if your application exceeds this limit.
Does this sheave come with the B series bushing included?
No, the bushing is sold separately to allow contractors to select the specific bore size required for their motor or fan shaft.
Can I run VX notched belts on this 5V sheave?
Yes, the 3B5V60 is fully compatible with both wrapped and cogged/notched belts like the 5VX or BX for improved heat dissipation and smaller pulley diameters.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
