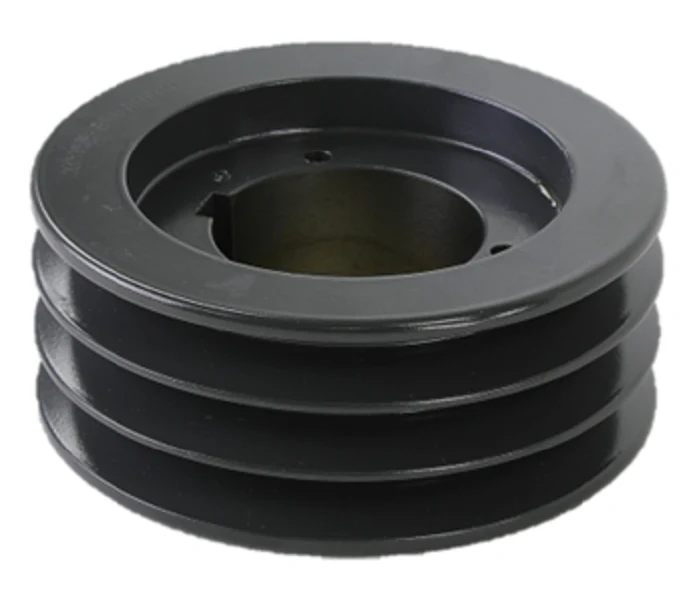

Browning 3B5V58 Sheave
The Browning 3B5V58 Sheave is a precision-engineered three groove B5V gripbelt sheave designed for demanding power transmission applications. Built for use with B series split taper bushings, this cast iron pulley features a 5.8" pitch diameter and a 6.08" outside diameter, ensuring reliable torque transfer and minimized belt slippage. This versatile B5V sheave is engineered to accommodate multiple belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts, making it a critical component for maintaining high-efficiency drive systems in commercial HVACR equipment. Its static balance and durable construction help reduce vibration and extend the service life of industrial belt drives. For contractors performing retrofits or maintenance, the Browning 3B5V58 provides the structural integrity required for high-RPM operation and heavy start-stop cycles common in air handling units and industrial blowers.
Key Benefits:
- Multi-Belt Compatibility: Engineered to work seamlessly with A, B, and 5V cross-sections, providing significant flexibility for field replacements.
- High-Grade Cast Iron Construction: Machined from fine-grain cast iron to ensure high wear resistance and thermal stability under heavy loads.
- B Series Bushing Integration: Utilizes the split taper design for a secure, keyed fit that prevents shaft marring and simplifies installation and removal.
- Precision Balance: Reduces rotational vibration, protecting motor bearings and improving overall system efficiency.
Common Questions:
What is the difference between a 5V and a B belt fitment on this sheave?
The Browning 3B5V58 is a combination groove design. While it is optimized for high-capacity 5V/5VX wedge belts, the groove geometry allows A and B series belts to seat correctly, though the horsepower ratings will vary based on the belt profile used.
Does this sheave come with the B bushing included?
No, this unit is a "bushed type" sheave. The B series bushing must be selected separately based on the specific motor or driven shaft diameter required for your application.
Can this three-groove sheave be used with only one or two belts?
While physically possible, it is best practice to utilize all three grooves to distribute the load or ensure the drive is re-rated for the reduced belt count to prevent premature wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $182.12
-65%$182.12
$63.74Browning 3B5V58 Sheave
The Browning 3B5V58 Sheave is a precision-engineered three groove B5V gripbelt sheave designed for demanding power transmission applications. Built for use with B series split taper bushings, this cast iron pulley features a 5.8" pitch diameter and a 6.08" outside diameter, ensuring reliable torque transfer and minimized belt slippage. This versatile B5V sheave is engineered to accommodate multiple belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts, making it a critical component for maintaining high-efficiency drive systems in commercial HVACR equipment. Its static balance and durable construction help reduce vibration and extend the service life of industrial belt drives. For contractors performing retrofits or maintenance, the Browning 3B5V58 provides the structural integrity required for high-RPM operation and heavy start-stop cycles common in air handling units and industrial blowers.
Key Benefits:
- Multi-Belt Compatibility: Engineered to work seamlessly with A, B, and 5V cross-sections, providing significant flexibility for field replacements.
- High-Grade Cast Iron Construction: Machined from fine-grain cast iron to ensure high wear resistance and thermal stability under heavy loads.
- B Series Bushing Integration: Utilizes the split taper design for a secure, keyed fit that prevents shaft marring and simplifies installation and removal.
- Precision Balance: Reduces rotational vibration, protecting motor bearings and improving overall system efficiency.
Common Questions:
What is the difference between a 5V and a B belt fitment on this sheave?
The Browning 3B5V58 is a combination groove design. While it is optimized for high-capacity 5V/5VX wedge belts, the groove geometry allows A and B series belts to seat correctly, though the horsepower ratings will vary based on the belt profile used.
Does this sheave come with the B bushing included?
No, this unit is a "bushed type" sheave. The B series bushing must be selected separately based on the specific motor or driven shaft diameter required for your application.
Can this three-groove sheave be used with only one or two belts?
While physically possible, it is best practice to utilize all three grooves to distribute the load or ensure the drive is re-rated for the reduced belt count to prevent premature wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
