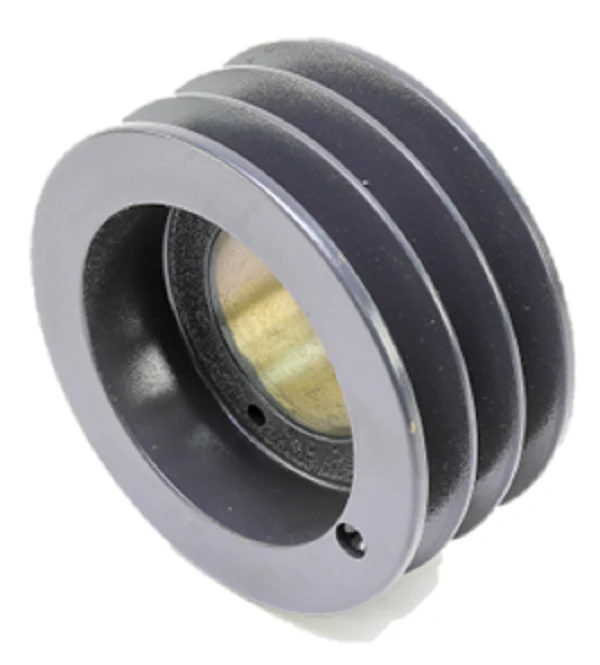

Browning 3B5V52 Sheave
The Browning 3B5V52 Sheave is a precision-engineered three-groove taper bore pulley designed for high-torque industrial fan and blower applications. Featuring a 5.48" outside diameter, this B5V Gripbelt Sheave is manufactured from high-grade grey cast iron to ensure long-term structural integrity under heavy radial loads. It is engineered specifically for use with B series split taper bushings, allowing for a secure, concentric fit on the shaft that minimizes vibration and mechanical wear. This versatile component is compatible with a wide range of belt profiles, including 5V, 5VX, A, AX, B, and BX V-belts, providing a cross-functional solution for various HVAC power transmission requirements. By utilizing a tapered bore sheave design, technicians can achieve superior clamping force compared to fixed-bore alternatives, ensuring consistent pitch diameter maintenance and optimal drive efficiency in demanding commercial environments.
Key Benefits- Broad Belt Compatibility: Engineered to run 5V, 5VX, 4L, A, AX, 5L, B, and BX belts, reducing the need for multiple inventory SKUs.
- Precision Balance: Machined to tight tolerances to reduce harmonic vibration and extend the service life of motor bearings.
- High Torque Transfer: The triple-groove configuration increases surface contact area, preventing belt slippage in high-static pressure systems.
- Robust Construction: Cast iron metallurgy provides excellent heat dissipation and resistance to abrasive wear in mechanical rooms.
What bushing is required for the Browning 3B5V52?
This sheave requires a B series split taper bushing. The specific bore size of the bushing must match your motor or fan shaft diameter for proper installation.
Can I use this sheave with standard A or B section belts?
Yes, the B5V groove profile is specifically designed to accommodate both narrow wedge (5V) and classical (A/B) v-belts, making it an ideal choice for retrofitting older belt drive systems.
How does the three-? design affect drive performance?
A three-groove sheave allows for multiple belts to share the load, which increases the horsepower capacity of the drive and provides redundancy if a single belt fails.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
