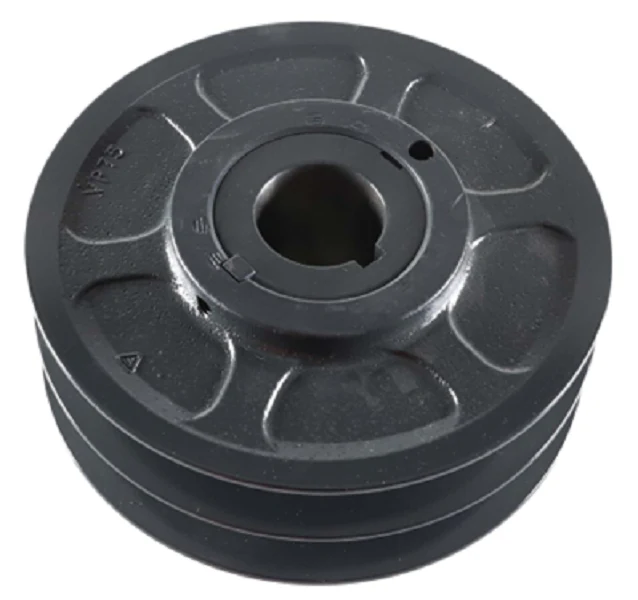

Browning 2VP75X 1 5/8 Sheave
The Browning 2VP75X 1 5/8 is a heavy-duty, two-groove variable pitch sheave engineered for precise speed tuning in high-demand HVACR and industrial blower applications. Constructed from high-tensile cast iron, this component features a 1 5/8" finished bore with a standard keyway to ensure a secure, slip-free fit on the motor shaft. With an outside diameter (OD) of 7.50", this adjustable pulley offers a versatile pitch diameter range of 5.9" to 7.4", allowing technicians to fine-tune belt drive speed for optimal airflow and system efficiency. It is compatible with multiple V-belt sections, including 4L, A, AX, 5L, B, BX, and 5V belts, making it a universal choice for fan and pump drives up to 25 horsepower. The precision-threaded variable pitch mechanism allows for incremental adjustments by rotating the flange, providing the exact RPM control required for balancing commercial air handling units.
Key Benefits:- Versatile Belt Compatibility: Designed to run A/B and 5V belt cross-sections for integrated power transmission flexibility.
- Precision Speed Control: The variable pitch design enables minute adjustments to the driven speed without changing pulleys.
- Rugged Cast Iron Durability: Provides superior vibration dampening and wear resistance compared to standard aluminum sheaves.
- High HP Capacity: Part of the 2VP series, capable of handling significant loads in industrial ventilator and pump assemblies.
- What is the maximum pitch diameter for 5V belts? When using 5V belts, the maximum pitch diameter is 7.40", which is achieved when the flanges are fully closed.
- Does this sheave require a separate bushing? No, the 2VP75X 1 5/8 features a finished bore of 1.625 inches with a pre-cut keyway for direct shaft mounting.
- How do you adjust the pitch on this two-groove model? Adjustments are made by loosening the setscrews and rotating the threaded flanges; both grooves must be adjusted equally to maintain belt alignment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
