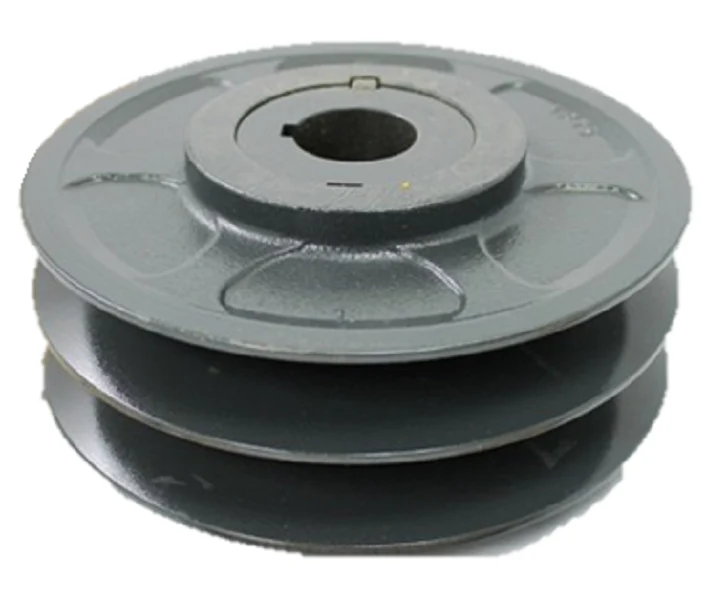

Browning 2VP75X 1 3/8 Sheave
The Browning 2VP75X 1 3/8 Sheave is a heavy-duty, two-groove variable pitch component engineered for high-demand HVACR and industrial blower applications. Constructed from durable cast iron, this 7.50" Outside Diameter sheave features a 1 3/8" fixed bore designed for direct mounting on motor or drive shafts. This variable pitch sheave allows technicians to fine-tune drive speeds and airflow without replacing pulleys, supporting a versatile pitch diameter range of 5.9" to 7.4".
Built for precision power transmission, the Browning 2VP75X is compatible with 4L, A, AX, 5L, B, BX, and 5V belts. The dual-groove design ensures efficient torque transfer and belt alignment, critical for maintaining system balance and reducing vibration. Whether you are performing a retro-fit or a new installation, this Browning sheave provides the mechanical flexibility required to meet specific air balance requirements in commercial air handling units and ventilation systems.
Key Benefits:
- Dual-Groove Variable Pitch: Allows for precision speed adjustments and air balancing in dual-belt drive systems.
- Broad Belt Compatibility: Engineered for use with multiple belt sections including A/B and 5V V-belts.
- Cast Iron Construction: High-grade material ensures long-term durability and resistance to wear in industrial environments.
- Fixed Bore Precision: The 1-3/8" finished bore provides a secure fit for standard motor shafts, reducing potential runout.
Common Questions:
How do I adjust the pitch diameter on the 2VP75X?
Technicians can adjust the pitch by loosening the locking setscrews and rotating the adjustable flanges. Moving the flanges closer increases the pitch diameter and driven speed, while moving them apart decreases it.
What is the maximum horsepower rating for this sheave?
Browning VP series sheaves are typically designed for fractional to integral horsepower applications, commonly covering range requirements up to 25 HP depending on the specific belt and RPM configuration.
Does this sheave require a separate bushing?
No, the 2VP75X 1 3/8 is a finished bore model with a fixed 1-3/8" diameter and keyway, meaning it is ready for direct installation on a matching shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
