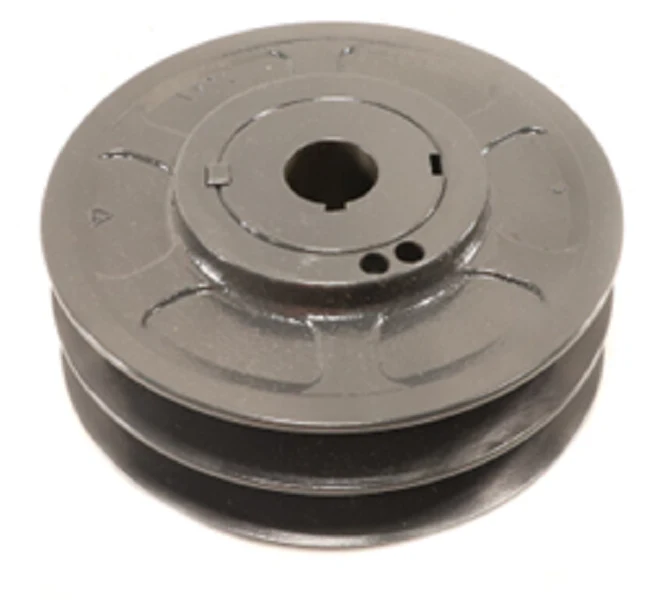

Browning 2VP71X 1 1/8 Sheave
The Browning 2VP71X 1 1/8 is a heavy-duty, two groove variable pitch sheave engineered for precise speed adjustment in HVACR air handling units and industrial blowers. Constructed from high-grade cast iron, this finished bore sheave features a 7.10" outside diameter and is designed for 1 1/8" motor shafts. The 2VP71X 1 1/8 allows for a range of pitch diameters—5.5" to 7.0"—enabling technicians to fine-tune CFM and system balancing accurately on the job site. This versatile adjustable pitch pulley is compatible with 4L, A, AX, 5L, B, BX, and 5V belts, providing broad cross-compatibility for motor-driven transmission systems. Its threaded barrel and female disc design ensure a secure mechanical lock, preventing slippage under high-torque starting loads. For contractors and maintenance teams, this Browning sheave provides the structural integrity needed to handle up to 25 horsepower in demanding ventilation and rooftop unit applications.
- Adjustable Speed Control: Variable pitch range of 5.5" to 7.0" allows for precise airflow and RPM calibration without hardware replacement.
- Multi-Belt Compatibility: Engineered for use with 4L, A, AX, 5L, B, BX, and 5V belts, reducing inventory requirements for different belt profiles.
- Cast Iron Durability: Robust construction resists wear and provides superior thermal dissipation for long-term industrial service.
- Fixed Bore Precision: The 1 1/8" finished bore provides a secure shaft mounting for standard HVAC motor shafts.
Common Questions:
How do I adjust the pitch on a Browning 2VP series sheave?
Adjustment is performed by loosening the setscrews and rotating the threaded discs. Moving the discs closer increases the pitch diameter and output speed, while moving them apart reduces it. Always verify consistent alignment after adjustment.
Can the 2VP71X 1 1/8 be used with 5V power belts?
Yes, this sheave is specifically rated for 5V belt sections, as well as A and B series belts, making it ideal for high-tension fan and motor drives.
What is the maximum horsepower rating for this sheave?
Browning VP series sheaves are typically suitable for applications up to 25 horsepower, depending on the specific belt section and drive configuration used.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $461.76
-65%$461.76
$161.62Browning 2VP71X 1 1/8 Sheave
The Browning 2VP71X 1 1/8 is a heavy-duty, two groove variable pitch sheave engineered for precise speed adjustment in HVACR air handling units and industrial blowers. Constructed from high-grade cast iron, this finished bore sheave features a 7.10" outside diameter and is designed for 1 1/8" motor shafts. The 2VP71X 1 1/8 allows for a range of pitch diameters—5.5" to 7.0"—enabling technicians to fine-tune CFM and system balancing accurately on the job site. This versatile adjustable pitch pulley is compatible with 4L, A, AX, 5L, B, BX, and 5V belts, providing broad cross-compatibility for motor-driven transmission systems. Its threaded barrel and female disc design ensure a secure mechanical lock, preventing slippage under high-torque starting loads. For contractors and maintenance teams, this Browning sheave provides the structural integrity needed to handle up to 25 horsepower in demanding ventilation and rooftop unit applications.
- Adjustable Speed Control: Variable pitch range of 5.5" to 7.0" allows for precise airflow and RPM calibration without hardware replacement.
- Multi-Belt Compatibility: Engineered for use with 4L, A, AX, 5L, B, BX, and 5V belts, reducing inventory requirements for different belt profiles.
- Cast Iron Durability: Robust construction resists wear and provides superior thermal dissipation for long-term industrial service.
- Fixed Bore Precision: The 1 1/8" finished bore provides a secure shaft mounting for standard HVAC motor shafts.
Common Questions:
How do I adjust the pitch on a Browning 2VP series sheave?
Adjustment is performed by loosening the setscrews and rotating the threaded discs. Moving the discs closer increases the pitch diameter and output speed, while moving them apart reduces it. Always verify consistent alignment after adjustment.
Can the 2VP71X 1 1/8 be used with 5V power belts?
Yes, this sheave is specifically rated for 5V belt sections, as well as A and B series belts, making it ideal for high-tension fan and motor drives.
What is the maximum horsepower rating for this sheave?
Browning VP series sheaves are typically suitable for applications up to 25 horsepower, depending on the specific belt section and drive configuration used.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
