Browning 2VP68X 1 3/8 Sheave

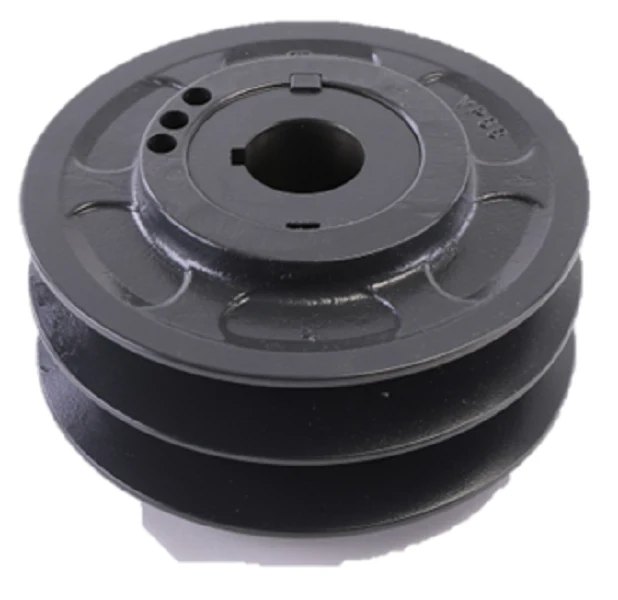

The Browning 2VP68X 1 3/8 is a heavy-duty, two-groove variable pitch sheave engineered for precise speed regulation in high-demand HVACR blower and fan assemblies. Constructed from high-grade cast iron, this VP series pulley features a 6.55" outside diameter and a 1 3/8" finished bore with keyway. It is designed to provide optimal torque transfer and adjustability for drive systems utilizing 4L, A, AX, 5L, B, BX, and 5V belts.
For technicians in the field, the 2VP68X offers a versatile variable pitch range of 4.8" to 6.4", allowing for fine-tuning of CFM output without the need for motor or pulley replacements. The precision-machined threaded barrel and female bore design ensure stable adjustment under load, while the dual-groove configuration supports up to 25 horsepower applications. This fixed bore sheave is the industry standard for balancing air systems and ensuring long-term belt alignment in commercial ventilation and industrial power transmission setups.
Key Benefits:- Wide Belt Compatibility: Versatile design works seamlessly with A, B, and 5V belt sections, reducing inventory requirements for multi-system service calls.
- Durable Cast Iron Housing: Provides superior vibration dampening and thermal stability compared to lighter alternatives, extending the lifecycle of the fan motor drive.
- Dynamic Balancing: Precision-machined to minimize harmonic vibration, protecting motor bearings and reducing noise in acoustic-sensitive environments.
- Simplified Adjustability: The adjustable pitch diameter allows for rapid site-specific calibration of blower speeds to meet exact system static pressure requirements.
- How do I adjust the pitch on this two-groove sheave? Loosen the setscrews on the adjustable flanges and rotate them equally. Each full turn typically changes the pitch diameter by approximately 0.16 inches; ensure both grooves are set identically to prevent belt slippage or uneven wear.
- What belts are compatible with the Browning 2VP68X? This sheave is engineered for use with 4L, A, AX, 5L, B, BX, and 5V belt profiles.
- Does this include the keyway and setscrews? Yes, the 1 3/8" finished bore includes a standard keyway and knurled setscrews for secure shaft mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
