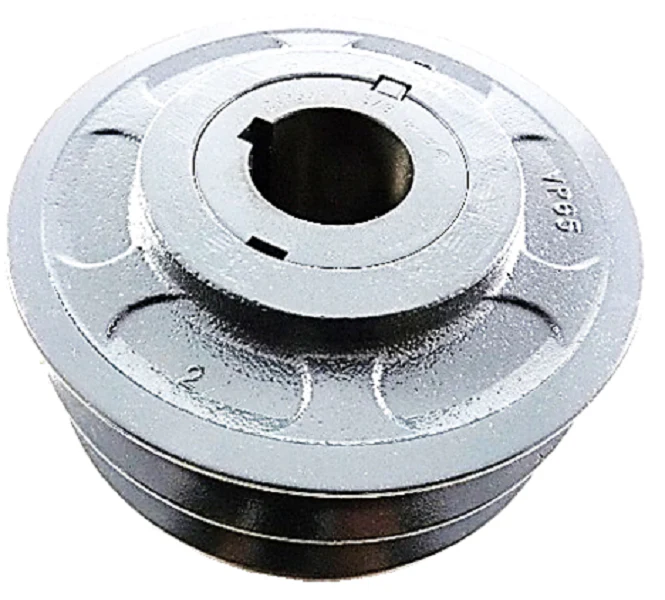

Browning 2VP65X 1 5/8 Sheave
The Browning 2VP65X 1 5/8 is a heavy-duty, cast iron variable pitch sheave designed for precise speed modulation in demanding HVACR and industrial fan applications. Featuring a 6.50" outside diameter and a 1 5/8" fixed bore with a standard keyway, this two-groove pulley provides the lateral stability required for dual-belt drive systems. The adjustable 4.9-6.4 variable pitch range allows technicians to fine-tune CFM delivery and system static pressure without the need for multiple fixed-diameter pulleys. Engineered for versatility, it is fully compatible with 4L, A, AX, 5L, B, BX, and 5V belts, ensuring a reliable fit for diverse power transmission setups. The threaded male and female disc design ensures secure positioning and concentricity, reducing vibration and extending the life of your HVAC blower motor pulleys during high-torque operation.
- Dual-Groove Precision: Designed for two-belt systems to handle higher horsepower loads in industrial ventilators and air handlers.
- Wide Belt Compatibility: Optimizes inventory by working seamlessly with A/B section V-belts and high-capacity 5V gripbelts.
- Fine-Tuning Capability: Adjustable pitch diameter enables exact RPM adjustments to meet specific balancing requirements of ventilation systems.
- Rugged Cast Iron Build: Provides superior heat dissipation and wear resistance compared to standard lightweight alloys.
What is the adjustment range for the Browning 2VP65X?
This sheave offers a pitch diameter range of 4.9" to 5.9" for A/4L belts and 5.2" to 6.4" for B/5L and 5V belts, allowing for significant driven-speed variance.
How do you secure the adjustable discs on this variable pitch pulley?
The male section features flat surfaces at 180-degree increments where the setscrews seat firmly, preventing the pitch from drifting during operation.
Is the bore size fixed or does it require a bushing?
This specific model features a 1 5/8" finished bore, meaning it mounts directly to the motor shaft without an external busing, provided the shaft size matches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
