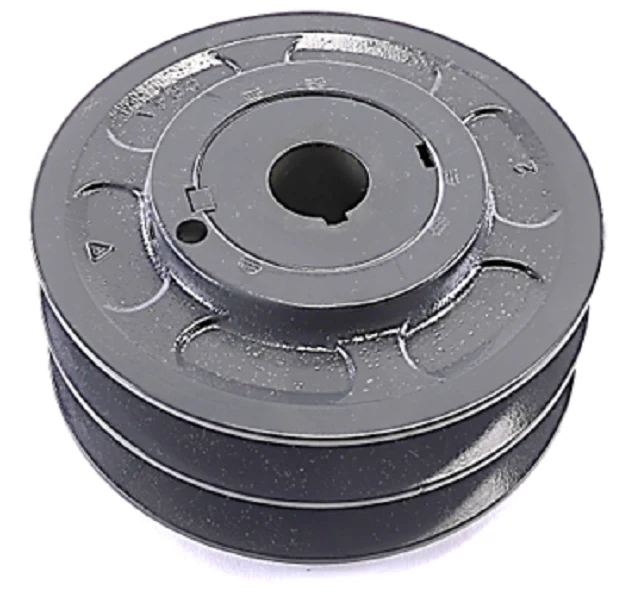

Browning 2VP65X 1 1/8 Sheave
The Browning 2VP65X 1 1/8 is a heavy-duty, VP-series variable pitch sheave designed for precision air handling and industrial power transmission. Engineered from high-grade cast iron, this two-groove component features a 6.50" outside diameter and a 1 1/8" finished bore with a standard keyway. This HVAC pulley allows for infinite adjustments to fan speeds and blower RPMs, providing a variable pitch range of 4.9" to 6.4" depending on the belt profile utilized. It is fully compatible with 4L, A, AX, 5L, B, BX, and 5V belts, making it a versatile choice for multi-groove drive systems. By adjusting the pitch diameter, technicians can fine-tune static pressure and CFM without needing to replace fixed-diameter sheaves. This industrial V-belt sheave is built to withstand the rigorous vibration and thermal demands of commercial mechanical rooms, ensuring long-term shaft stability and consistent torque transfer in demanding mechanical drive systems.
Key Benefits- Adjustable Pitch Design: Professional-grade 2-groove variable pitch allows for field adjustments to driven speeds, optimizing system performance without hardware swaps.
- Rugged Cast Iron Construction: High-density cast iron provides superior heat dissipation and dampens harmonic vibrations for quieter operation.
- Broad Belt Compatibility: Versatile groove geometry accommodates 4L, A, AX, 5L, B, BX, and 5V belt sections for maximum application flexibility.
- Precision Bore: Features a factory-finished 1 1/8" bore with a standard keyway and set screw for a secure, slip-free attachment to the motor shaft.
What is the adjustment range for the Browning 2VP65X?
The pitch diameter typically adjusts from 4.9" to 5.9" for A-section belts and 5.2" to 6.4" for B and 5V sections, allowing for significant RPM tuning in HVAC and pumping applications.
Is this sheave balanced for high-speed operation?
Browning VP sheaves are precision-machined to ensure static balance, reducing bearing wear on the motor and the driven component during high-velocity rotation.
How do I adjust the grooves on a 2-groove variable sheave?
Technicians must loosen the set screws and rotate the adjustable flange. It is vital to ensure both grooves are adjusted to the same pitch to maintain equal belt tension and prevent premature drive failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $291.99
-65%$291.99
$102.20Browning 2VP65X 1 1/8 Sheave
The Browning 2VP65X 1 1/8 is a heavy-duty, VP-series variable pitch sheave designed for precision air handling and industrial power transmission. Engineered from high-grade cast iron, this two-groove component features a 6.50" outside diameter and a 1 1/8" finished bore with a standard keyway. This HVAC pulley allows for infinite adjustments to fan speeds and blower RPMs, providing a variable pitch range of 4.9" to 6.4" depending on the belt profile utilized. It is fully compatible with 4L, A, AX, 5L, B, BX, and 5V belts, making it a versatile choice for multi-groove drive systems. By adjusting the pitch diameter, technicians can fine-tune static pressure and CFM without needing to replace fixed-diameter sheaves. This industrial V-belt sheave is built to withstand the rigorous vibration and thermal demands of commercial mechanical rooms, ensuring long-term shaft stability and consistent torque transfer in demanding mechanical drive systems.
Key Benefits- Adjustable Pitch Design: Professional-grade 2-groove variable pitch allows for field adjustments to driven speeds, optimizing system performance without hardware swaps.
- Rugged Cast Iron Construction: High-density cast iron provides superior heat dissipation and dampens harmonic vibrations for quieter operation.
- Broad Belt Compatibility: Versatile groove geometry accommodates 4L, A, AX, 5L, B, BX, and 5V belt sections for maximum application flexibility.
- Precision Bore: Features a factory-finished 1 1/8" bore with a standard keyway and set screw for a secure, slip-free attachment to the motor shaft.
What is the adjustment range for the Browning 2VP65X?
The pitch diameter typically adjusts from 4.9" to 5.9" for A-section belts and 5.2" to 6.4" for B and 5V sections, allowing for significant RPM tuning in HVAC and pumping applications.
Is this sheave balanced for high-speed operation?
Browning VP sheaves are precision-machined to ensure static balance, reducing bearing wear on the motor and the driven component during high-velocity rotation.
How do I adjust the grooves on a 2-groove variable sheave?
Technicians must loosen the set screws and rotate the adjustable flange. It is vital to ensure both grooves are adjusted to the same pitch to maintain equal belt tension and prevent premature drive failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
