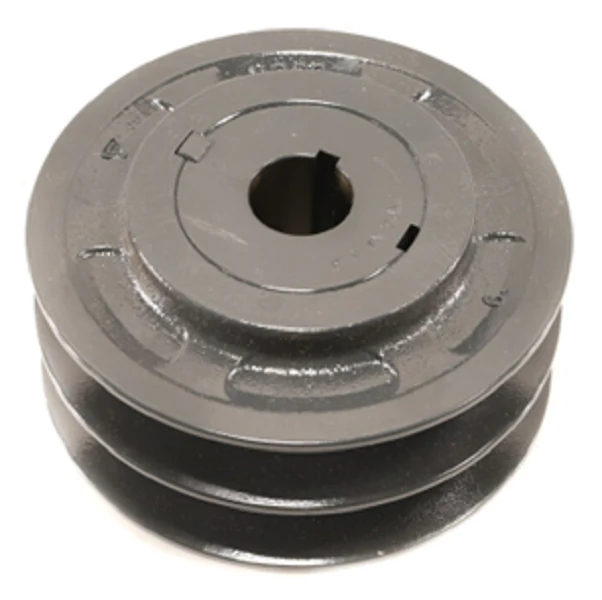

Browning 2VP62X 1 1/8 Sheave
The Browning 2VP62X is a heavy-duty two groove variable pitch sheave engineered for precision RPM control in demanding HVACR and industrial blower applications. Constructed from high-grade cast iron, this 5.95" OD sheave features a 1-1/8" fixed bore designed for secure shaft mounting on fractional and integral horsepower motors. With an adjustable pitch range of 4.4 to 5.9 inches, it provides technicians the flexibility to fine-tune system airflow and static pressure without changing out the entire drive assembly. This component is highly versatile, supporting 4L, A, AX, 5L, B, BX, and 5V belts. The precision-machined grooves ensure optimal belt seating and reduced vibration, which significantly extends the service life of the fan drive system and associated bearings. Whether you are balancing an air handling unit or optimizing a commercial exhaust fan, this 2VP series sheave delivers the mechanical reliability required for continuous-duty cycles and high-torque power transmission.
Key Benefits- Precision-machined cast iron construction provides superior wear resistance and heat dissipation in high-load environments.
- Dial-in exact system CFMs with an adjustable pitch range of 4.4" to 5.9".
- Universal compatibility with A, B, and 5V belt profiles simplifies inventory for field service technicians.
- The two-groove design accommodates higher horsepower requirements than standard single-groove variations.
- Equipped with a 1-1/8" fixed bore and standard keyway for traditional shaft mounting on HVAC blower motors.
How do you adjust the pitch diameter on the Browning 2VP62X?
To adjust the pitch, loosen the set screws on the moving flange, rotate the flange to increase or decrease the pitch diameter (which alters the fan speed), and then re-tighten the set screws on the flat of the internal hub.
What belt series can be used with this sheave?
This sheave is dual-rated/multi-rated for use with 4L, A, AX, 5L, B, BX, and 5V belts, making it a versatile choice for various motor and fan pulley configurations.
Is this a bushed or fixed bore sheave?
The 2VP62X 1 1/8 is a fixed bore sheave, meaning it is machined to fit a 1-1/8 inch shaft directly without the need for a separate bushing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
