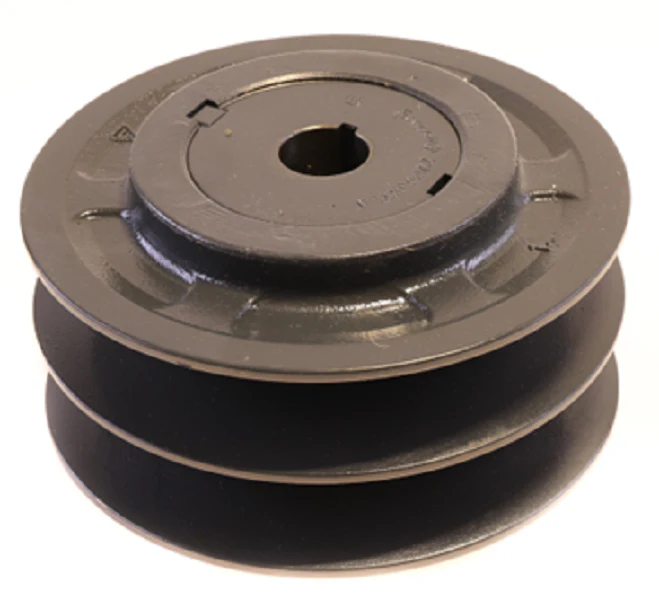

Browning 2VP60X7/8 Sheave
The Browning 2VP60X7/8 Sheave is a heavy-duty cast iron variable pitch sheave engineered for precise air balancing and performance tuning in commercial HVACR systems. Built for the rigors of mechanical rooms, this VP series sheave features a 6.00" outside diameter and two grooves, allowing for simultaneous adjustment across various belt profiles. The 7/8" finished bore ensures a secure fit on standard motor shafts, while the variable pitch range of 4.4" to 5.9" provides the flexibility needed to dial in exact CFM requirements. Designed to minimize vibration and maximize power transfer, this two groove variable speed pulley is a staple for contractors handling high-demand blowers and fans.
This sheave is compatible with a wide array of drive configurations, supporting 4L, A, AX, 5L, B, BX, and 5V belts. The robust cast iron construction handles high-torque starts and continuous industrial duty cycles without significant wear. By utilizing the adjustable pitch diameter, technicians can optimize driven speeds to meet specific facility requirements, making it an essential component for both new installations and retrofitting existing air handlers.
Key Benefits- Versatile Belt Compatibility: Supports 4L/A, 5L/B, and 5V belt sections, allowing for broad application across different drive setups.
- Precision Air Balancing: Features an adjustable 4.4-5.9" pitch diameter to fine-tune fan speeds for optimal system efficiency.
- Durable Cast Iron Build: Engineered from high-grade cast iron for superior heat dissipation and structural integrity under heavy loads.
- Standardized Fit: The 7/8" fixed bore with integrated keyway provides a reliable, slip-free connection to the drive shaft.
- Two-Groove Design: Specifically built for multi-belt drives, ensuring balanced tension and extended belt life.
What belt types should I use with the Browning 2VP60X7/8?
This sheave is designed to work with 4L, A, AX, 5L, B, BX, and 5V V-belt sections, making it highly versatile for various HVACR motor applications.
How do I adjust the pitch diameter?
To adjust the Browning 2VP60X7/8 Sheave, loosen the locking setscrews on the outer ring and rotate the moving flange to achieve your required pitch diameter between 4.4" and 5.9", then re-torque the screws to specification.
Is this sheave suitable for high-horsepower motors?
Yes, the VP series cast iron sheaves are rated for industrial use and are commonly found on blower motors up to 25 HP depending on the specific drive design.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $406.92
-65%$406.92
$142.42Browning 2VP60X7/8 Sheave
