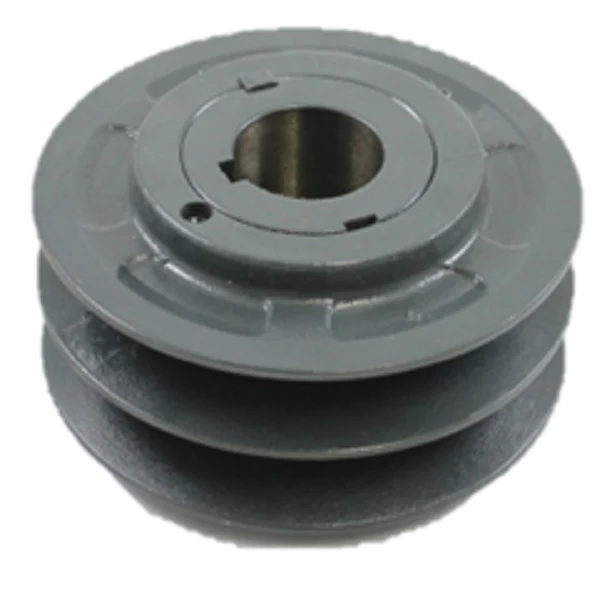

Browning 2VP60X 1 5/8 Sheave
The Browning 2VP60X 1 5/8 is a high-performance two-groove variable pitch sheave engineered for precise air handling and fan drive adjustments. Featuring a 6.00" outside diameter and a 1 5/8" fixed bore, this cast iron pulley is designed for rigorous HVACR environments. It provides a pitch diameter range of 4.4" to 5.9", allowing technicians to fine-tune BHP requirements and airflow velocity without replacing the entire drive system. This component is compatible with diverse belt profiles, including 4L, A, AX, 5L, B, BX, and 5V belts, ensuring versatility across multiple blower configurations. The cast iron construction offers superior heat dissipation and vibration dampening compared to lighter alloys. When balancing static pressure in commercial air handlers, the 2VP60X provides the mechanical reliability needed for long-term drive stability. Utilizing a variable speed pulley like this simplifies field adjustments while maintaining the structural integrity of the drivetrain under high torque loads.
- Universal Belt Compatibility: Engineered for use with A, B, and 5V cross-sections, reducing inventory complexity for contractors.
- Variable Pitch Range: Offers a 4.4" - 5.9" adjustment range to precisely dial in fan RPM and system static pressure.
- Durable Cast Iron: Provides high mass for reduced harmonic vibration and improved belt life in heavy-duty applications.
- Fixed Bore Precision: The 1 5/8" machined bore ensures a secure shaft fit, minimizing runout and catastrophic drive failure.
Common Questions
How do I adjust the pitch on the Browning 2VP60X?
To adjust the pitch, loosen the set screws on the moveable flange and rotate the flange to increase or decrease the pitch diameter. Ensure both grooves are adjusted equally to maintain belt alignment and prevent premature wear.
What belts are compatible with this sheave?
This sheave is designed to work with 4L, A, AX, 5L, B, BX, and 5V belts. For high-torque applications, using AX or BX notched belts is recommended for better heat dissipation.
Does this sheave require a specific bushing?
No, the 2VP60X is a fixed bore sheave factory-machined for a 1 5/8" shaft. Ensure your motor or blower shaft matches this dimension exactly before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
