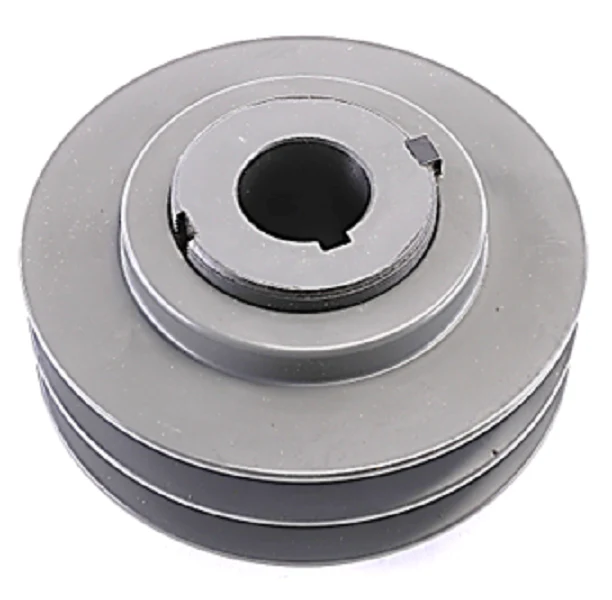

Browning 2VP60X 1 3/8 Sheave
The Browning 2VP60X 1 3/8 is a heavy-duty, cast iron variable pitch sheave engineered for precise air handling and fan speed adjustments in commercial HVACR systems. Featuring a 6.00" outside diameter and a 1 3/8" fixed bore, this two-groove pulley is designed for high-torque applications requiring exact RPM tuning. Its versatile design accommodates multiple belt profiles, including 4L, A, AX, 5L, B, BX, and 5V belts, allowing for a 4.4" to 5.9" pitch diameter range. The precision-machined grooves and Browning split taper bushing compatibility (where applicable) ensure minimal vibration and reduced shaft wear. For technicians balancing multi-fan arrays or fine-tuning static pressure, the adjustable pitch sheave provides the necessary granularity. Built to withstand the rigors of continuous duty, the 2VP60X offers superior heat dissipation and structural integrity compared to lighter aluminum alternatives, ensuring long-term drive alignment and belt life in HVAC blower motor drive assemblies.
Key Benefits:
- Multi-Belt Compatibility: Engineered for use with A, B, and 5V drive belts, providing flexibility across various motor platforms.
- Precision Speed Tuning: The variable pitch design allows for 4.4-5.9 inch adjustment to meet specific CFM requirements.
- Cast Iron Durability: High-grade cast iron construction resists groove wear and maintains balance under high-load conditions.
- Standardized Bore: The 1-3/8 inch fixed bore with keyway ensures a secure, slip-free fit on standard blower shafts.
Common Questions:
How do I adjust the pitch on the 2VP60X sheave?
Loosen the set screws on the adjustable flange and rotate the flange to the desired pitch diameter. Ensure the flanges are synchronized before tightening to maintain proper belt alignment.
Which belts provide the highest efficiency with this sheave?
While compatible with several profiles, using cogged AX or BX belts typically reduces internal friction and heat buildup compared to standard wrapped belts.
Can this sheave be used on a 1-inch shaft?
No, this specific model features a 1 3/8" fixed bore. You would need a bushing-style sheave or a different fixed bore model to accommodate a smaller shaft diameter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
