Browning 2VP42X7/8 Sheave

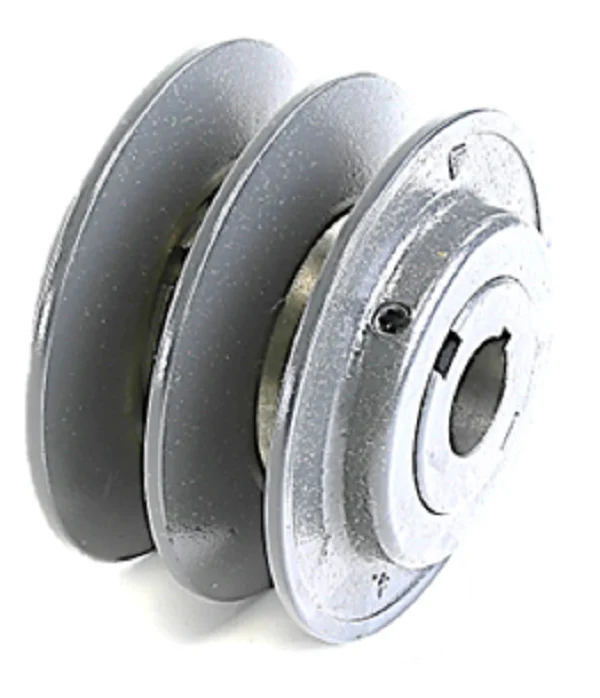

The Browning 2VP42X7/8 Sheave is a high-grade two groove variable pitch sheave engineered for precise speed adjustment in HVAC fan and blower systems. Built from cast iron for superior vibration dampening and long-term durability, this VP series sheave features a 7/8" finished bore with a standard keyway and two 5/16-18 knurled setscrews to ensure a secure shaft fit. With a 3.95" outside diameter, the variable pitch design allows for an adjustable range from 2.5" to 4.0", providing contractors with the flexibility to fine-tune drive system CFM without swapping pulleys. Designed for industrial power transmission, it is fully compatible with 3L, 4L, A, AX, 5L, B, and BX belt sections. This robust component is a standard requirement for balancing airflow in commercial air handlers and ventilation equipment where precise speed control and efficient torque transfer are critical for system performance.
Key Benefits- Adjustable Pitch Diameter: Allows for 2.5" to 4.0" variable adjustment to optimize motor-to-fan speed ratios.
- Multi-Belt Compatibility: Engineered to work seamlessly with A, B, 3L, 4L, and 5L belt profiles for maximum application versatility.
- Durable Cast Iron Construction: Provides excellent wear resistance and thermal stability in demanding industrial environments.
- Dual Groove Design: Supports higher horsepower drives and redundant belt systems frequently found in commercial HVAC blowers.
- Finished Bore: Precision-machined 7/8" bore with keyway and setscrews allows for immediate installation without additional machining.
How do I adjust the pitch on this sheave?
To adjust the pitch, loosen the 5/16" setscrews on the adjustable flanges. Turning the flanges closer together increases the pitch diameter (increasing driven speed), while moving them apart decreases it. Ensure both flanges are adjusted equally to maintain proper belt alignment.
What belt types can I use with the 2VP42X7/8?
This sheave is highly versatile, supporting 3L, 4L (A or AX), and 5L (B or BX) belt sections. Always check that your belt size matches the groove profile for optimal power transmission.
Is this suitable for high-vibration applications?
Yes, the cast iron material and finished bore design provide the structural integrity required to minimize runout and handle the dynamic loads of industrial fan assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
