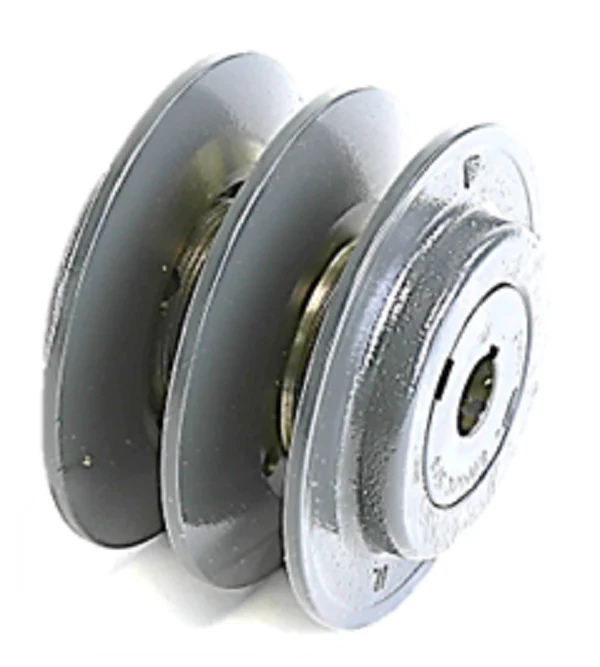

Browning 2VP42X5/8 Sheave
The Browning 2VP42X5/8 Sheave is a high-grade variable pitch pulley engineered for precision air handling and industrial power transmission. This two groove cast iron sheave features a 5/8" finished bore with keyway, providing a secure fit for standard motor shafts. Designed for versatile performance, it supports a wide range of belt profiles including 3L, 4L, A, AX, 5L, B, and BX belts. The 3.95" outside diameter allows for significant mechanical adjustment; the pitch diameter ranges from 2.5" to 3.3" for 3L belts and 3.0" to 4.0" for 5L/B belts. This Browning VP series sheave is dynamically balanced to reduce vibration and extend the lifecycle of your bearings and motor. Its adjustable pitch design enables contractors to fine-tune fan speeds and system CFM without replacing the entire drive assembly. Built with fine-grain cast iron, this dual groove sheave ensures maximum durability under high-torque conditions in commercial HVACR applications.
Key Benefits- Precise Speed Adjustment: Allows for infinite tuning within the pitch range to meet exact air balance requirements.
- Broad Belt Compatibility: Machined to accept multiple V-belt sections including A, B, and FHP series for maximum field flexibility.
- Reduced System Vibration: Precision-balanced cast iron construction minimizes harmonic noise and mechanical wear.
- Secure Shaft Mounting: Features a 5/8" fixed bore with a standard keyway and setscrews for reliable torque transfer.
What is the maximum pitch adjustment for this sheave?
The pitch diameter is adjustable up to 5 or 6 full turns depending on the belt section. For B belts, the range typically spans from 3.0" to 4.0".
Can I use this with a 5/8" shaft without a keyway?
While the sheave includes setscrews, it is designed for a 5/8" shaft with a 3/16" x 3/32" keyway to ensure the high-torque demands of a two-groove drive are met safely.
Is this sheave compatible with Cogged (AX/BX) belts?
Yes, the groove profile is compatible with both standard wrapped belts and raw-edge cogged belts for improved efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
