Browning 2TB94 Sheave

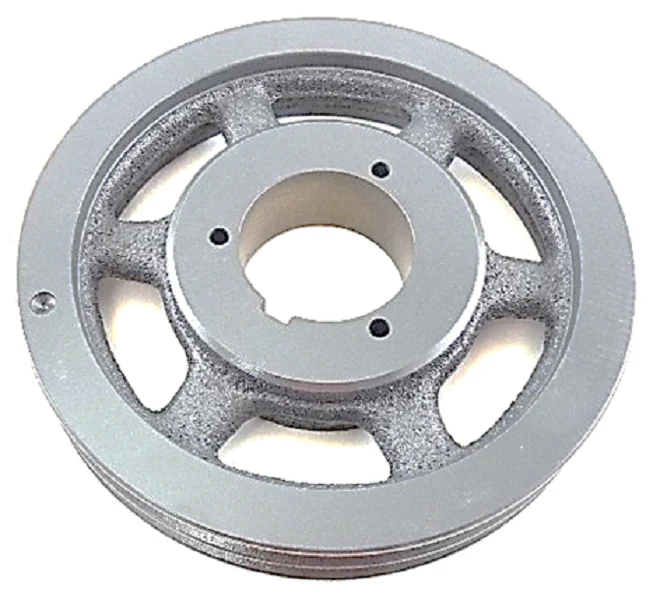

The Browning 2TB94 Sheave is a heavy-duty two-groove TB Gripbelt sheave engineered for industrial power transmission systems requiring precise speed ratios and high torque capacity. With a 9.75" outside diameter (OD), this cast iron component is designed for balanced operation and minimal vibration in air handling units and mechanical drives. It is compatible with A, AX, B, and BX section belts, providing a versatile solution for contractors managing diverse HVACR maintenance requirements. This sheave utilizes Q1 series tapered bushings, ensuring a secure, concentric fit on the shaft that prevents slippage and reduces mechanical wear on the motor and fan assembly. The datum diameter and groove geometry are optimized for consistent belt seating, maintaining drive efficiency and extending the service life of the drive components in high-static pressure environments.
Key Benefits
- Dual-groove design allows for multi-belt drive configurations, increasing power transmission and providing redundancy.
- Fits Q1 split-taper bushings for easy installation and removal without damaging the shafting.
- Compatible with A and B cross-section belts (including notched AX and BX types) for application flexibility.
- High-grade cast iron construction provides excellent heat dissipation and structural integrity under high loads.
- Precision-machined grooves ensure uniform belt tension and reduced harmonic resonance within the drive assembly.
Common Questions
What is the difference between the 2TB94 datum diameter for A vs. B belts?
The pitch diameter varies by belt profile; for A belts, the datum diameter is approximately 8.8", while for B belts, it is 9.4". Always verify your drive ratio calculations based on the specific belt section used.
Can I use this sheave with a standard bored-to-size shaft?
No, the 2TB94 requires a Q1 series bushing to mount to the shaft. This allows you to adapt the sheave to various shaft diameters by simply changing the bushing.
Is the Browning 2TB94 balanced for high-speed operation?
Browning sheaves are manufactured to precise tolerances; however, for applications exceeding standard motor speeds, ensure the entire rotating assembly is checked for dynamic balance to prevent bearing failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $204.39
-65%$204.39
$71.54Browning 2TB94 Sheave
The Browning 2TB94 Sheave is a heavy-duty two-groove TB Gripbelt sheave engineered for industrial power transmission systems requiring precise speed ratios and high torque capacity. With a 9.75" outside diameter (OD), this cast iron component is designed for balanced operation and minimal vibration in air handling units and mechanical drives. It is compatible with A, AX, B, and BX section belts, providing a versatile solution for contractors managing diverse HVACR maintenance requirements. This sheave utilizes Q1 series tapered bushings, ensuring a secure, concentric fit on the shaft that prevents slippage and reduces mechanical wear on the motor and fan assembly. The datum diameter and groove geometry are optimized for consistent belt seating, maintaining drive efficiency and extending the service life of the drive components in high-static pressure environments.
Key Benefits
- Dual-groove design allows for multi-belt drive configurations, increasing power transmission and providing redundancy.
- Fits Q1 split-taper bushings for easy installation and removal without damaging the shafting.
- Compatible with A and B cross-section belts (including notched AX and BX types) for application flexibility.
- High-grade cast iron construction provides excellent heat dissipation and structural integrity under high loads.
- Precision-machined grooves ensure uniform belt tension and reduced harmonic resonance within the drive assembly.
Common Questions
What is the difference between the 2TB94 datum diameter for A vs. B belts?
The pitch diameter varies by belt profile; for A belts, the datum diameter is approximately 8.8", while for B belts, it is 9.4". Always verify your drive ratio calculations based on the specific belt section used.
Can I use this sheave with a standard bored-to-size shaft?
No, the 2TB94 requires a Q1 series bushing to mount to the shaft. This allows you to adapt the sheave to various shaft diameters by simply changing the bushing.
Is the Browning 2TB94 balanced for high-speed operation?
Browning sheaves are manufactured to precise tolerances; however, for applications exceeding standard motor speeds, ensure the entire rotating assembly is checked for dynamic balance to prevent bearing failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
