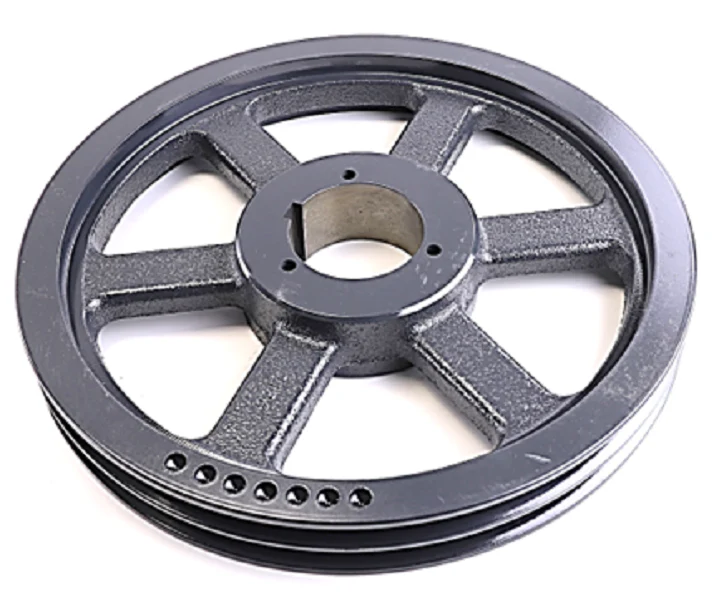

Browning 2TB136 Sheave
The Browning 2TB136 Sheave is a heavy-duty two-groove TB Gripbelt sheave engineered for demanding HVACR and industrial drive applications. Featuring a 13.95" outside diameter (OD), this cast iron pulley is designed to interface with Q1 split taper bushings, ensuring a secure, concentric fit on the shaft. This specific B-section sheave provides the versatility required for multiple belt profiles, maintaining high power transmission efficiency for A, AX, B, and BX belts. By utilizing a split taper bushing design, it allows for easier installation and removal compared to finished bore options, reducing downtime during maintenance cycles. The precision-machined grooves ensure optimal belt seating, reducing vibration and extending the service life of your drive components. Whether you are replacing a worn fan pulley or configuring a new blower assembly, the 2TB136 provides the structural integrity and balance necessary for high-torque performance in commercial air handling units and refrigeration systems.
- Dual-Groove Versatility: Supports two-belt drive configurations to increase torque capacity and system redundancy.
- Multi-Belt Compatibility: Engineered for use with 4L/A, AX and 5L/B, BX belts, providing flexibility for various drive ratios.
- Q1 Bushing Integration: Utilizes a Q1 series split taper bushing for reliable shaft attachment and easier field adjustments.
- Durable Cast Iron Construction: Built to withstand the rigors of continuous HVAC duty and resist wear under high mechanical loads.
Common Questions:
What is the pitch diameter for the 2TB136 when using B-belts?
When utilizing B-groove belts, the datum diameter is 13.6", which is critical for calculating precise drive ratios and RPM outputs.
Does this sheave require a specific bushing?
Yes, the 2TB136 is designed specifically for a Q1 split taper bushing. The bushing size must match your motor or blower shaft diameter and is sold separately.
Can I use this with AX cogged belts?
This sheave is fully compatible with AX cogged belts, which can offer improved heat dissipation and efficiency in smaller pulley applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
