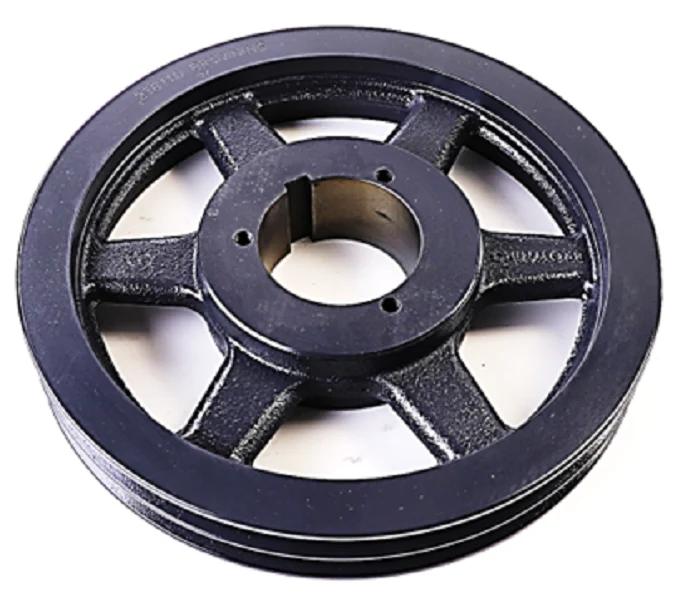

Browning 2TB110 Sheave
The Browning 2TB110 Sheave is a heavy-duty, two-groove TB sheave engineered for high-demand HVACR and industrial drive systems. Constructed from high-grade precision-machined close-grain cast iron, this sheave is statically balanced to ensure vibration-free performance and extended bearing life in critical air handling applications. With an 11.35" outside diameter, the 2TB110 utilizes the proprietary Browning Split Taper Bushing system, specifically the Q1 series bushing, which provides a superior key-to-key drive for both the shaft and the hub.
This Gripbelt sheave features a versatile combination groove design, allowing seamless compatibility with A, AX, B, and BX V-belts. This flexibility enables contractors to optimize pitch diameters (10.6" for A/AX and 11.0" for B/BX) to meet specific torque and speed requirements. The robust bushed bore sheave design ensures easy installation and removal, making it a standard choice for technicians maintaining commercial rooftop units and belt-driven fans. Rely on the 2TB110 cast iron pulley for consistent power transmission and reduced belt wear in demanding environments.
Key Benefits:- Versatile Belt Compatibility: The unique combination groove accommodates A, AX, B, and BX belts, reducing the need for multiple SKUs in your service truck.
- Precision Balance: Each unit is statically balanced to eliminate mechanical vibration, protecting motor bearings and improving overall system efficiency.
- Superior Hub Engagement: Designed for Q1 Series Bushings, the split taper system provides the only true key-to-key drive on the market.
- Durable Construction: High-tensile close-grain cast iron provides excellent heat dissipation and resists groove wear under high-load cycles.
What is the difference between the pitch diameter and outside diameter for the 2TB110?
The 11.35" outside diameter (O.D.) is the physical edge-to-edge measurement, while the pitch diameter—which dictates the actual drive ratio—varies by belt type: 10.6" for A-section belts and 11.0" for B-section belts.
Does this sheave come with the Q1 bushing?
No, this is a bushed bore sheave only. The Q1 series bushing must be purchased separately to match your specific motor shaft diameter.
Is this sheave suitable for high-speed fan applications?
Yes, because the Browning 2TB110 is precision-machined and statically balanced, it is ideal for high-RPM fan drives where vibration mitigation is critical.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
