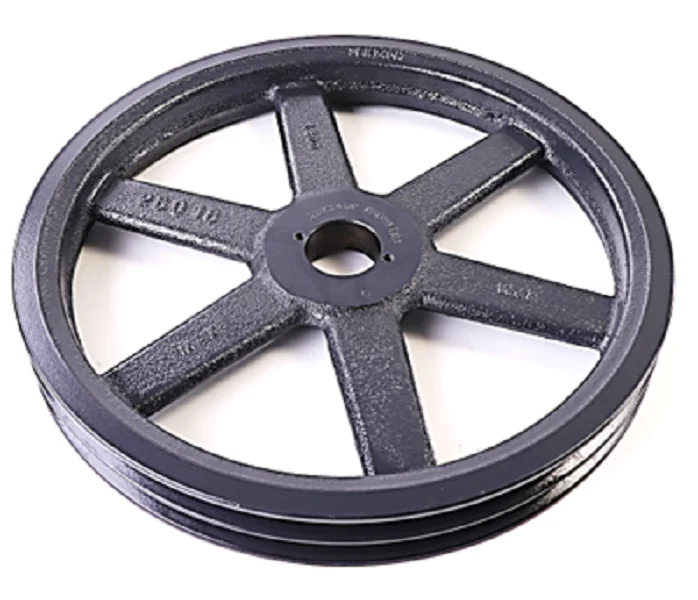

Browning 2BK140H Sheave
The Browning 2BK140H Sheave is a precision-engineered double groove cast iron pulley designed for high-torque power transmission in industrial HVACR systems. Built to accommodate H series bushings, this 13.75-inch OD component is compatible with 4L, 5L, A, and B V-belts, providing a versatile solution for varying load requirements. The high-grade cast iron construction minimizes vibration and ensures consistent pitch diameter under heavy mechanical stress. Contractors rely on the 2BK140H pitch diameter accuracy to maintain system efficiency and static pressure benchmarks. This split taper bushing sheave allows for secure shaft mounting, reducing the risk of slippage compared to standard bored-to-size pulleys. Whether used in large scale air handlers or commercial blower assemblies, the Browning 2BK sheave series is the industry standard for durability and reliable two-groove pulley performance in demanding mechanical environments.
- Dual-Groove Versatility: Supports multiple belt profiles including A-section and B-section belts for flexible drive configurations.
- Precision Machined: Static balancing reduces bearing wear and extends the life of the motor and driven components.
- Interchangeable Hub: Utilizes the H series split taper bushing system for easy installation and removal on various shaft diameters.
- Industrial Construction: Heavy-duty cast iron housing resists deformation and provides excellent heat dissipation during continuous operation.
- Which bushing is required for the Browning 2BK140H? This sheave requires an H-style bushing, which must be sized to match your specific motor or fan shaft diameter.
- What is the effective diameter for B-style belts? While the outside diameter is 13.75", the datum diameter for B belts is approximately 13.4", ensuring proper tension and speed ratios.
- Can this be used with 5L v-belts? Yes, the groove geometry is designed to seat 4L, 5L, A, and B belts securely for optimal power transfer.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
