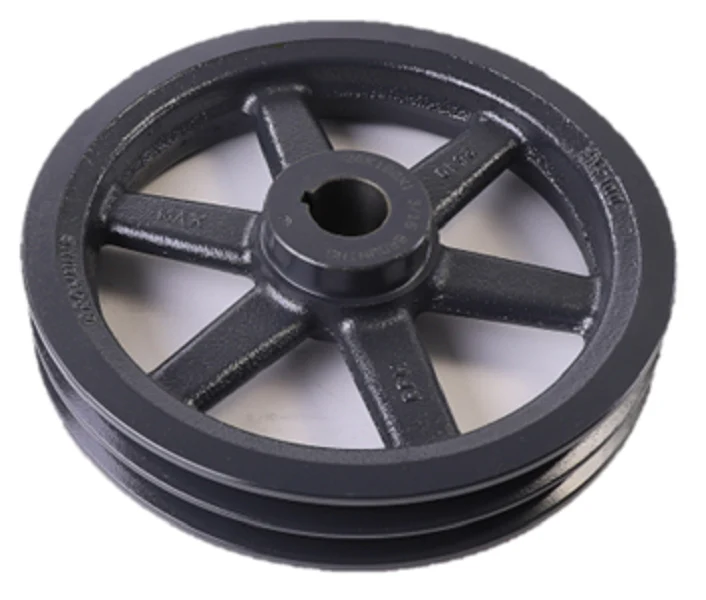

Browning 2BK100X 1 3/16 Sheave
The Browning 2BK100X 1 3/16 is a heavy-duty two groove cast iron sheave engineered for demanding HVACR and industrial blower applications. Built from high-tensile Class 30 cast iron, this 9.75" OD fixed bore sheave provides the structural rigidity required to minimize vibration in high-torque environments. Designed for maximum versatility, it is compatible with 4L, 5L, A, and B belts, allowing technicians to standardize drive components across various air handling units. The 1 3/16" precision-machined bore ensures a secure shaft fit, reducing the risk of fretting corrosion or slippage during startup. Whether you are performing a preventative maintenance overhaul or a field replacement, this Browning BK sheave delivers consistent pitch diameter stability and heat dissipation. By utilizing a double groove pulley design, it increases power transmission capacity for critical commercial ventilation cycles where uptime is non-negotiable.
- Precision Machined Bore: The 1 3/16" fixed bore ensures concentric rotation and reduces mechanical wear on motor shafts.
- Multi-Belt Compatibility: Engineered to accept A, B, 4L, and 5L cross-sections for versatile field application.
- Durable Cast Iron Construction: High-grade gray iron casting offers superior dampen capacity against drive-train harmonics.
- Static Balanced: Factory balancing reduces bearing loads and extends the service life of associated fan motors.
Common Questions
Is the Browning 2BK100X compatible with both A and B section V-belts?
Yes, this sheave is designed with a universal groove profile that accommodates 4L, 5L, A, and B belts, providing flexibility for different drive ratios and horsepower requirements.
What is the outside diameter and pitch diameter for this sheave?
The unit features a 9.75" Outside Diameter (OD). The datum diameter or pitch diameter will vary slightly depending on whether you are running A or B belts.
Does this fixed bore sheave include a setscrew?
Standard Browning BK sheaves come equipped with a standard keyway and setscrew to ensure a positive mechanical lock on the 1 3/16" shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
