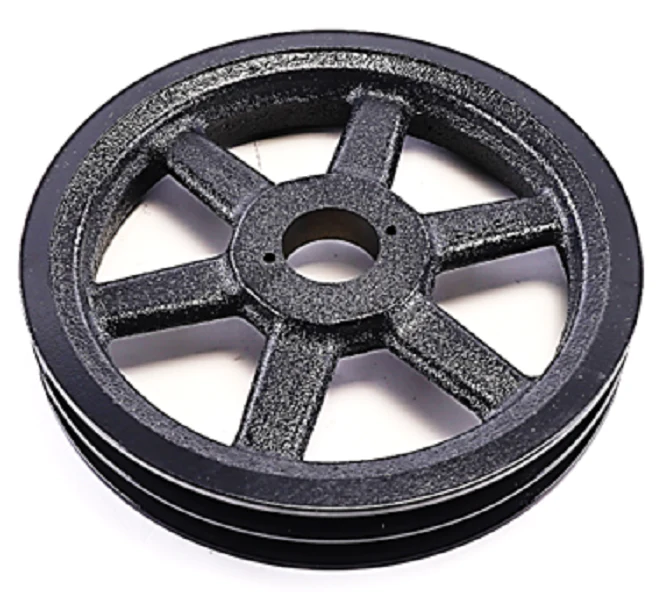

Browning 2BK100H Sheave
The Browning 2BK100H Sheave is a precision-engineered, dual-groove power transmission component designed for high-torque HVACR applications. Constructed from high-grade cast iron, this BK cast iron sheave features a 9.75" outside diameter and is dynamically balanced to ensure smooth operation and reduced vibration in heavy-duty air handling units. Engineered for versatility, this sheave is compatible with 4L, 5L, A, and B belts, providing reliable power transfer across various drive configurations. This unit requires H series bushings for split-taper mounting, ensuring a secure, concentric fit on the shaft. The heavy-duty casting resists wear and thermal deformation, making the Browning 2BK100H 9.75 a standard choice for contractors requiring fixed bore sheaves or tapered drive assemblies that demand long-term structural integrity and precise pitch diameter maintenance under variable loads.
Key Benefits for Contractors
- Multi-Belt Compatibility: Designed to accept 4L, 5L, A, and B section V-belts for increased job site flexibility.
- Cast Iron Durability: High-density grey cast iron construction provides superior wear resistance compared to stamped steel alternatives.
- Precision Machining: Ensures optimal belt-to-groove contact, reducing slippage and extending the life of the drive system.
- H-Bushing Integration: Utilizes the reliable H-series split taper bushing system for easy installation and removal without shaft damage.
Common Questions
What is the pitch diameter for this sheave?
The pitch diameter for the Browning 2BK100H varies by belt type: it facilitates a 9.0" datum diameter for A belts and 9.4" for B belts, ensuring accurate RPM calculations for fan and blower drives.
Can I use a 5L belt with the 2BK100H?
Yes, the 2BK100H is specifically machined to accommodate 5L and B series belts, as well as the narrower 4L and A series belts, providing a wide range of industrial power transmission options.
Does this unit come with the bushing?
No, like most industrial sheaves, the H-series bushing is sold separately so you can select the specific bore size required for your motor or fan shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
