Browning 2B5V90 Sheave

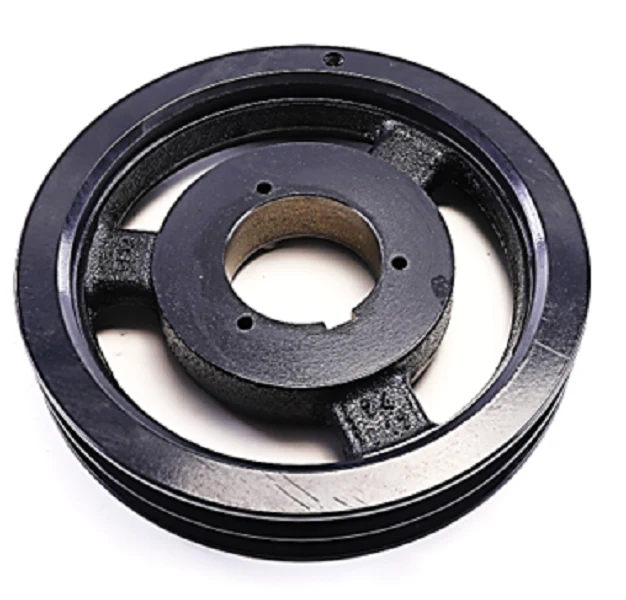

The Browning 2B5V90 Sheave is a precision-engineered two-groove cast iron sheave designed for high-demand power transmission in HVACR and industrial drive systems. Utilizing a 9.28" Outside Diameter, this component is compatible with a wide range of belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. Engineered with the B5V Gripbelt combination groove, it allows contractors to optimize drive ratios without carrying excessive inventory. This sheave requires a B Series Split Taper Bushing to ensure a secure, key-to-key drive between the shaft and the hub, providing superior torque transmission and reducing the risk of slippage under heavy loads. The cast iron construction has been optimized through Finite Element Analysis (FEA) to balance weight and structural integrity, specifically for fans, blowers, and pump applications. Whether you are performing a retro-fit or a new install, the 2B5V90 provides the exact pitch diameters needed for 9.1" 5V, 9.3" B, and 8.8" A belt sections.
Key Benefits:
- Universal Compatibility: The B5V groove design supports classical (A, B) and narrow (5V) belt sections, simplifying field replacements.
- Engineered Precision: CAD-developed cast iron body ensures long-term concentricity and reduced vibration in high-RPM HVAC motor applications.
- High Torque Capacity: Designed for use with B Split Taper Bushings, facilitating a high-friction connection for reliable power delivery from 5 to 125 horsepower drives.
- Reduced Maintenance: The gripbelt sheave geometry minimizes belt wear, extending the service life of 5VX and BX Cogged belts.
Common Questions:
What bushing type does the Browning 2B5V90 require?
This sheave is specifically designed to work with a B series split taper bushing. The bushing must be purchased separately to match your specific shaft diameter.
Can I use this for both A and B section belts?
Yes. The Browning 2B5V90 features a combination groove that accommodates A, B, and 5V belts, as well as their notched counterparts like AX, BX, and 5VX.
Is this sheave suitable for high-speed blower applications?
Absolutely. These sheaves are precision-balanced and manufactured from high-quality cast iron, making them ideal for the continuous duty cycles found in commercial blowers and exhaust fans.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $218.26
-65%$218.26
$76.39Browning 2B5V90 Sheave
