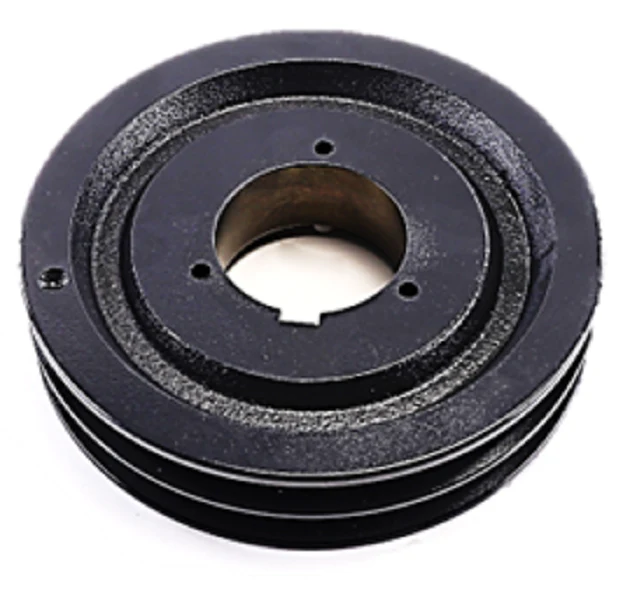

Browning 2B5V74 Sheave
The Browning 2B5V74 Sheave is a high-performance 2-groove v-belt pulley engineered for heavy-duty power transmission in HVACR and industrial applications. This cast iron sheave features the versatile B5V combination groove, allowing contractors to standardize inventory while supporting multiple belt profiles, including A, B, and 5V belts (as well as 4L, 5L, AX, BX, and 5VX). With a 7.68-inch outside diameter and a webbed construction, this component is designed for maximum structural integrity and reduced vibration during high-torque operation.
Built for use with B series split taper bushings, the 2B5V74 ensures a secure, concentric fit on the shaft, providing a true key-to-key drive. This fixed pitch sheave simplifies drive selection by offering a 7.5" pitch diameter for 5V belts and a 7.4" datum diameter for B belts. Its CAD-developed casting optimizes weight-to-strength ratios, making it a reliable choice for commercial air handlers, cooling towers, and pump systems where precise speed ratios and long-term durability are critical.
Key Benefits- Universal Compatibility: The combination groove design supports A, B, and 5V belt sections, reducing the need to stock multiple specialized sheaves.
- High Torque Capacity: Utilizes B series bushings for a robust split taper connection that minimizes slippage and shaft wear.
- Industrial Durability: Machined from high-grade cast iron with a webbed design to withstand the stresses of continuous-duty HVACR equipment.
- Precision Performance: Engineered for balanced operation and accurate pitch diameters (5V: 7.5", A: 7.2", B: 7.7") to maintain efficiency.
What is the maximum bore size for this sheave?
The 2B5V74 requires a B series split taper bushing, which accommodates bore sizes ranging from 0.500" up to 2.4375".
Can I use banded belts with this B5V sheave?
No, B5V sheaves utilize unique groove spacing to allow for multiple belt types and are not compatible with banded v-belts.
Does this include the bushing?
No, this is the sheave only. The B series bushing must be purchased separately based on your specific motor or fan shaft diameter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
