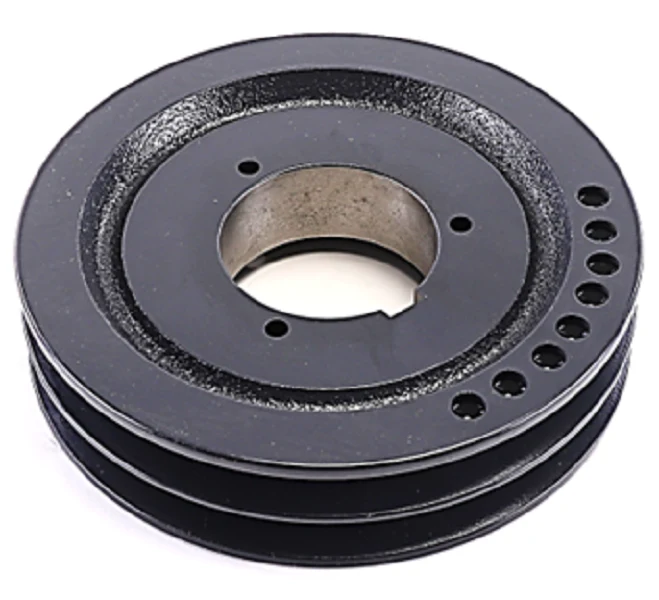

Browning 2B5V66 Sheave
The Browning 2B5V66 Sheave is a high-performance two groove B5V Gripbelt sheave engineered for demanding industrial power transmission applications. Constructed from durable cast iron, this sheave features a 6.88" outside diameter and is designed to work exclusively with B series split taper bushings. Its unique multi-groove geometry provides exceptional versatility, allowing a single component to accommodate A, B, and 5V belt sections, including cogged AX, BX, and 5VX variants. This "combination groove" design optimizes inventory by serving various pitch diameters and horsepower requirements within a single unit.
For contractors and plant engineers, the 2B5V66 incorporates the Browning split taper bushing system, providing a secure key-to-key drive to both the shaft and the hub. This ensures maximum concentricity and torque carrying capacity compared to standard bored-to-size alternatives. The CAD-developed casting maximizes structural integrity while maintaining a balanced profile for high-speed operation. Whether you are replacing a worn drive in an HVAC blower assembly or configuring a new motor-to-pump interface, this bushed bore multiple sheave delivers consistent RPM ratios and reduced belt wear.
Key Benefits:- Universal Compatibility: Supports 4L, A, AX, 5L, B, BX, 5V, and 5VX belt sections for ultimate field flexibility.
- Split Taper Design: Uses the B series bushing for a high-torque, concentric fit that prevents shaft galling.
- Industrial Strength: Precision-machined cast iron construction ensures long-term durability in high-duty cycle environments.
- Optimized Performance: Engineered via Finite Element Analysis to provide high horsepower-to-weight ratios.
- Which bushing is required for the 2B5V66? This sheave requires a B series split taper bushing, which is sold separately to match your specific shaft diameter.
- Can I run different belt types in the same sheave? Yes, the combination groove design allows you to run A, B, or 5V belts depending on your specific drive ratio and load requirements.
- What is the pitch diameter for a 5V belt on this sheave? When using a 5V belt, the pitch diameter is 6.7", ensuring precise speed control in high-capacity drives.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $175.97
-65%$175.97
$61.59Browning 2B5V66 Sheave
The Browning 2B5V66 Sheave is a high-performance two groove B5V Gripbelt sheave engineered for demanding industrial power transmission applications. Constructed from durable cast iron, this sheave features a 6.88" outside diameter and is designed to work exclusively with B series split taper bushings. Its unique multi-groove geometry provides exceptional versatility, allowing a single component to accommodate A, B, and 5V belt sections, including cogged AX, BX, and 5VX variants. This "combination groove" design optimizes inventory by serving various pitch diameters and horsepower requirements within a single unit.
For contractors and plant engineers, the 2B5V66 incorporates the Browning split taper bushing system, providing a secure key-to-key drive to both the shaft and the hub. This ensures maximum concentricity and torque carrying capacity compared to standard bored-to-size alternatives. The CAD-developed casting maximizes structural integrity while maintaining a balanced profile for high-speed operation. Whether you are replacing a worn drive in an HVAC blower assembly or configuring a new motor-to-pump interface, this bushed bore multiple sheave delivers consistent RPM ratios and reduced belt wear.
Key Benefits:- Universal Compatibility: Supports 4L, A, AX, 5L, B, BX, 5V, and 5VX belt sections for ultimate field flexibility.
- Split Taper Design: Uses the B series bushing for a high-torque, concentric fit that prevents shaft galling.
- Industrial Strength: Precision-machined cast iron construction ensures long-term durability in high-duty cycle environments.
- Optimized Performance: Engineered via Finite Element Analysis to provide high horsepower-to-weight ratios.
- Which bushing is required for the 2B5V66? This sheave requires a B series split taper bushing, which is sold separately to match your specific shaft diameter.
- Can I run different belt types in the same sheave? Yes, the combination groove design allows you to run A, B, or 5V belts depending on your specific drive ratio and load requirements.
- What is the pitch diameter for a 5V belt on this sheave? When using a 5V belt, the pitch diameter is 6.7", ensuring precise speed control in high-capacity drives.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
