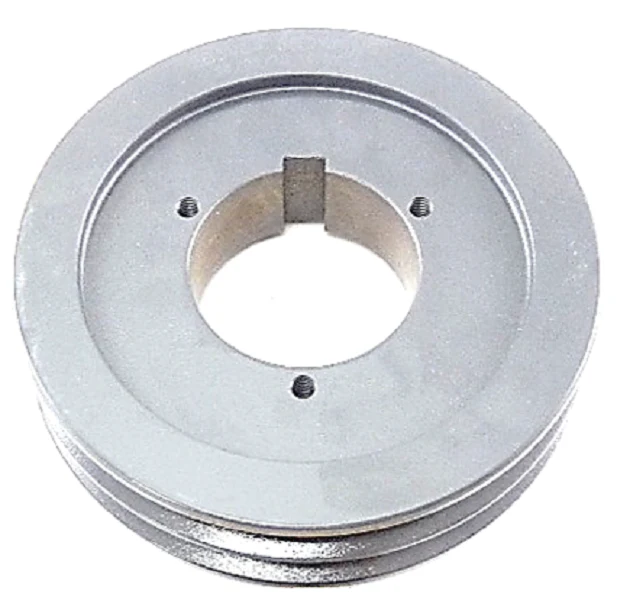

Browning 2B5V64 Sheave
The Browning 2B5V64 Sheave is a precision-engineered fixed bore sheave designed for high-capacity power transmission in demanding HVACR and industrial blower applications. Featuring a 6.68" outside diameter and two-groove configuration, this B5V Gripbelt Sheave is built to interface seamlessly with B series bushings. Engineered for versatility, it supports 4L, A, AX, 5L, B, BX, 5V, and 5VX belt profiles, making it a critical component for technicians managing mixed-belt inventories or upgrading legacy drive systems. The cast iron construction ensures optimal heat dissipation and structural integrity under significant torque loads, while the balance precision minimizes vibration to extend bearing life in the motor and driven shaft. This industrial V-belt pulley provides a reliable solutions for maintaining proper static pressure and airflow in commercial air handling units. Its compatibility with tapered bushings allows for easy installation and precise alignment on various shaft diameters, ensuring a secure, slip-free fit during high-RPM operations.
Key Benefits- Broad Belt Compatibility: Designed to accommodate 5V/5VX and A/B cross-sections, offering flexibility for multiple mechanical drive configurations.
- Enhanced Torque Transfer: The two-groove design increases surface contact area, reducing belt slippage and improving energy efficiency in heavy-duty cycles.
- B Bushing System: Utilizes the reliable B series bushing mounting for superior concentricity and easy removal even after years of service.
- Durable Cast Iron Construction: Built to withstand the harsh environments of mechanical rooms, providing long-term resistance to wear and fatigue.
What is the pitch diameter of the Browning 2B5V64?
The pitch diameter varies based on the belt profile used; for 5V belts, the effective diameter is approximately 6.30", while B belts typically track at a 6.00" pitch diameter.
Can I use this sheave with a standard 1-inch shaft?
Yes, provided you use the appropriate B series bushing with a 1-inch bore. The sheave itself requires a bushing for shaft mounting.
Is the 2B5V64 suitable for high-speed exhaust fans?
This B5V sheave is rated for standard industrial RPM limits; however, always verify that your fan’s operational speed does not exceed the maximum rim speed of 6,500 FPM for gray iron sheaves.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
