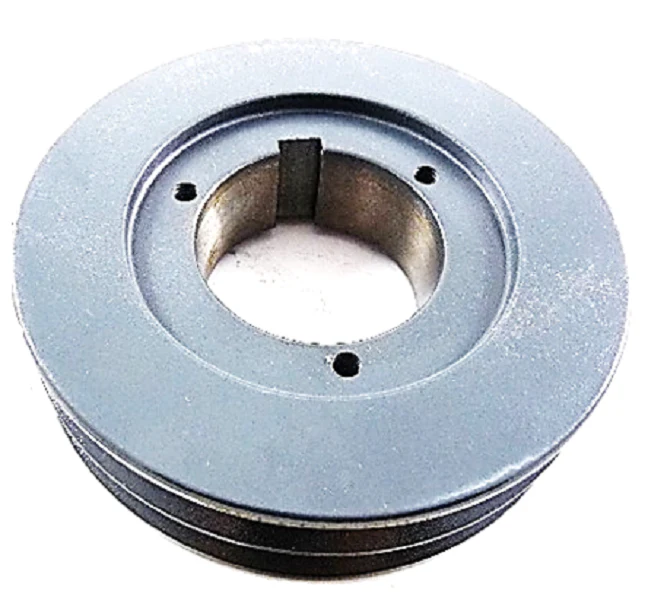

Browning 2B5V60 Sheave
The Browning 2B5V60 Sheave is a high-performance, two-groove cast iron v-belt pulley designed for industrial-grade power transmission in HVACR and mechanical systems. Engineered with a 6.28" outside diameter, this B5V Gripbelt sheave features a versatile combination groove design that allows for the seamless operation of 4L, A, AX, 5L, B, BX, 5V, and 5VX belt sections. This cross-compatibility reduces the need for extensive inventory while providing broad horsepower coverage range of 5 to 125 HP.
Designed to be used with B series split taper bushings, the 2B5V60 ensures a precise key-to-key drive, securing the component firmly to both the shaft and the hub for maximum torque transfer without reliance on set screws. The datum diameter varies by belt type, providing 5.6" for A belts, 6.0" for B belts, and a 6.1" pitch diameter for 5V belts. The robust cast iron construction, refined through finite element analysis, offers superior durability and vibration dampening for heavy-duty fan and blower applications.
Key Benefits- Universal Belt Compatibility: The unique B5V groove profile accepts A, B, and 5V belt sections, allowing for easier field replacements and system upgrades.
- Split Taper Bushing System: Utilizes B series bushings to provide a true concentric fit and high torque capacity, preventing shaft slippage and fretting corrosion.
- Optimized Performance: CAD-designed casting ensures an ideal strength-to-weight ratio, reducing overhung loads on motor and fan bearings.
- Precision Machined: Minimizes belt wear and friction, extending the service life of the entire drive assembly.
What is the difference between datum and pitch diameter for this sheave?
The effective diameter changes based on the belt profile used; for the 2B5V60, the B-belt datum is 6.0", while the 5V-belt pitch is 6.1". Always verify your drive calculations based on the specific belt section installed.
Does this part include the shaft bushing?
No, the B series split taper bushing is sold separately to allow for different bore size requirements (ranging from 1/2" to 2-7/16").
Can I use banded belts with the 2B5V60?
No. Because of the specific groove spacing required for the B5V combination design, these sheaves are not compatible with banded v-belts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
