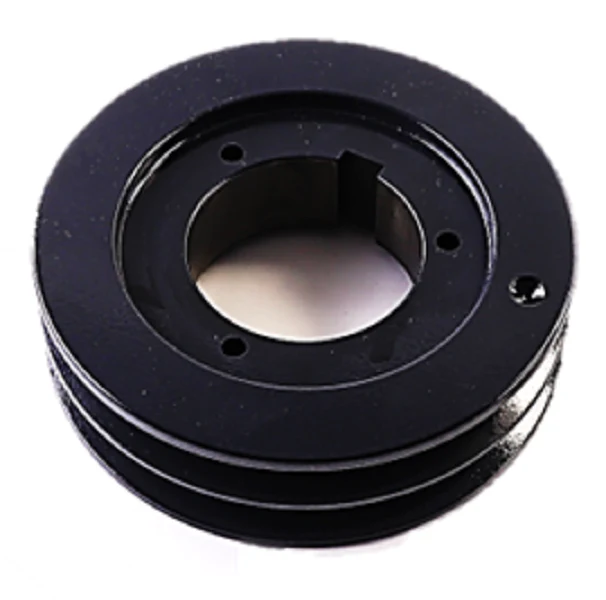

Browning 2B5V56 Sheave
The Browning 2B5V56 Sheave is a precision-engineered v-belt pulley designed for heavy-duty HVACR and industrial power transmission systems. Featuring a 5.88" outside diameter and a two-groove configuration, this B5V Gripbelt Sheave is engineered for high-torque applications requiring reliable drive performance. This component is optimized for use with B series bushings and maintains strict tolerances to ensure minimal vibration and reduced shaft wear. It offers versatile cross-compatibility, supporting 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. Constructed from fine-grain cast iron, the 2B5V56 ensures long-term pitch diameter stability under high load conditions. Contractors frequently utilize this sheave in blower assemblies and condenser fan motors where consistent RPM ratios are critical. By utilizing the Gripbelt design, this sheave maximizes surface contact, preventing belt slippage and improving the overall mechanical efficiency of the drive train.
Key Technical Benefits
- Broad Belt Compatibility: Designed to accommodate A, B, and 5V belt profiles, providing flexibility for diverse mechanical setups.
- Precision Machined: Static balance and high-grade casting reduce harmonic distortion and extend bearing life in connected motors.
- Split Taper Bushing Integration: Utilizes B series bushings for a secure, concentric fit on the shaft, facilitating easier installation and removal.
- Dual Groove Design: Allows for increased horsepower capacity and redundant power transmission in critical HVAC systems.
Common Questions
What is the datum diameter for the Browning 2B5V56?
The datum diameter varies based on the belt used; for 5V belts, the effective pitch diameter is 5.5", while A and B belts will seat differently within the groove geometry.
Does this sheave include the B series bushing?
No, the B series bushing is sold separately to allow technicians to select the specific bore size required for their motor or fan shaft.
Can the 2B5V56 handle high-speed 5VX notched belts?
Yes, this sheave is fully compatible with 5VX belts, which are ideal for smaller pulley diameters where heat dissipation and flexibility are required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $154.51
-65%$154.51
$54.08Browning 2B5V56 Sheave
The Browning 2B5V56 Sheave is a precision-engineered v-belt pulley designed for heavy-duty HVACR and industrial power transmission systems. Featuring a 5.88" outside diameter and a two-groove configuration, this B5V Gripbelt Sheave is engineered for high-torque applications requiring reliable drive performance. This component is optimized for use with B series bushings and maintains strict tolerances to ensure minimal vibration and reduced shaft wear. It offers versatile cross-compatibility, supporting 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. Constructed from fine-grain cast iron, the 2B5V56 ensures long-term pitch diameter stability under high load conditions. Contractors frequently utilize this sheave in blower assemblies and condenser fan motors where consistent RPM ratios are critical. By utilizing the Gripbelt design, this sheave maximizes surface contact, preventing belt slippage and improving the overall mechanical efficiency of the drive train.
Key Technical Benefits
- Broad Belt Compatibility: Designed to accommodate A, B, and 5V belt profiles, providing flexibility for diverse mechanical setups.
- Precision Machined: Static balance and high-grade casting reduce harmonic distortion and extend bearing life in connected motors.
- Split Taper Bushing Integration: Utilizes B series bushings for a secure, concentric fit on the shaft, facilitating easier installation and removal.
- Dual Groove Design: Allows for increased horsepower capacity and redundant power transmission in critical HVAC systems.
Common Questions
What is the datum diameter for the Browning 2B5V56?
The datum diameter varies based on the belt used; for 5V belts, the effective pitch diameter is 5.5", while A and B belts will seat differently within the groove geometry.
Does this sheave include the B series bushing?
No, the B series bushing is sold separately to allow technicians to select the specific bore size required for their motor or fan shaft.
Can the 2B5V56 handle high-speed 5VX notched belts?
Yes, this sheave is fully compatible with 5VX belts, which are ideal for smaller pulley diameters where heat dissipation and flexibility are required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
