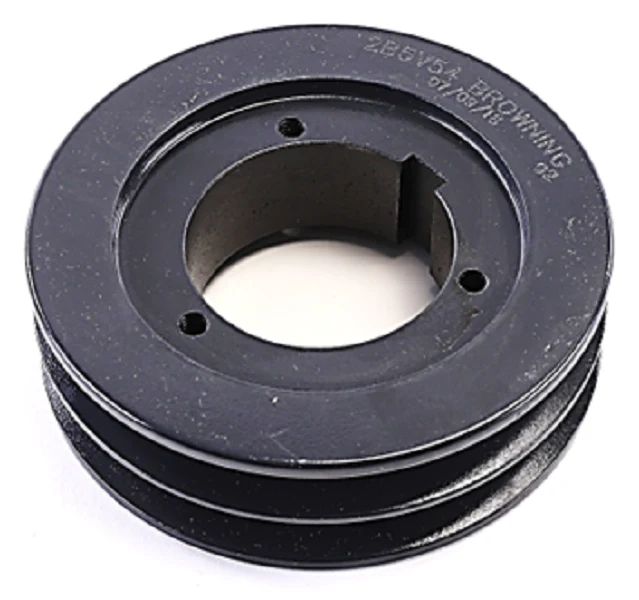

Browning 2B5V54 Sheave
The Browning 2B5V54 Sheave is a high-performance two groove B5V Gripbelt sheave designed for demanding industrial and HVACR drive systems. Featuring a 5.68" outside diameter, this precision-engineered component utilizes the Browning Split Taper Bushing system to provide a secure, key-to-key drive on the shaft. Constructed from high-grade cast iron, the 2B5V54 provides maximum durability and vibration dampening for high-torque applications. Its unique combination groove design allows seamless compatibility with multiple belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. This versatility makes it an essential inventory item for contractors managing diverse equipment fleets. By integrating CAD-developed casting designs, this v-belt pulley ensures optimal weight distribution and long-term reliability in the field. When your drive system requires a split taper sheave with broad horsepower coverage and exact tolerances, the Browning 2B5V54 delivers the mechanical efficiency required for professional-grade power transmission.
- Universal Belt Compatibility: Supports A, B, and 5V belt sections, reducing the need for multiple specialized sheaves in your service truck.
- Enhanced Shaft Grip: Designed for use with B series bushings, the split taper mechanism ensures a reliable, non-slip fit even under heavy load.
- Rugged Cast Iron Build: Engineered to withstand harsh environments, offering superior wear resistance compared to standard pressed-steel alternatives.
- Optimized Drive Ratios: The 5.68-inch OD provides specific pitch diameters (5.0" for A, 5.4" for B, 5.5" for 5V) to fine-tune system performance.
Common Questions
What belt types can I run with the Browning 2B5V54?
This sheave is highly versatile; it is designed to accommodate 4L, A, AX, 5L, B, BX, 5V, and 5VX belt sections within its two grooves.
Which bushing is required for installation?
The 2B5V54 requires a B series Split Taper Bushing. Ensure you select the correct bore size for your specific motor or fan shaft.
Is this sheave suitable for high-horsepower HVAC blowers?
Yes, the B5V series is specifically designed for high-capacity power transmission, supporting drives ranging from 5 to 125 horsepower depending on the configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $160.27
-65%$160.27
$56.09Browning 2B5V54 Sheave
The Browning 2B5V54 Sheave is a high-performance two groove B5V Gripbelt sheave designed for demanding industrial and HVACR drive systems. Featuring a 5.68" outside diameter, this precision-engineered component utilizes the Browning Split Taper Bushing system to provide a secure, key-to-key drive on the shaft. Constructed from high-grade cast iron, the 2B5V54 provides maximum durability and vibration dampening for high-torque applications. Its unique combination groove design allows seamless compatibility with multiple belt profiles, including 4L, A, AX, 5L, B, BX, 5V, and 5VX belts. This versatility makes it an essential inventory item for contractors managing diverse equipment fleets. By integrating CAD-developed casting designs, this v-belt pulley ensures optimal weight distribution and long-term reliability in the field. When your drive system requires a split taper sheave with broad horsepower coverage and exact tolerances, the Browning 2B5V54 delivers the mechanical efficiency required for professional-grade power transmission.
- Universal Belt Compatibility: Supports A, B, and 5V belt sections, reducing the need for multiple specialized sheaves in your service truck.
- Enhanced Shaft Grip: Designed for use with B series bushings, the split taper mechanism ensures a reliable, non-slip fit even under heavy load.
- Rugged Cast Iron Build: Engineered to withstand harsh environments, offering superior wear resistance compared to standard pressed-steel alternatives.
- Optimized Drive Ratios: The 5.68-inch OD provides specific pitch diameters (5.0" for A, 5.4" for B, 5.5" for 5V) to fine-tune system performance.
Common Questions
What belt types can I run with the Browning 2B5V54?
This sheave is highly versatile; it is designed to accommodate 4L, A, AX, 5L, B, BX, 5V, and 5VX belt sections within its two grooves.
Which bushing is required for installation?
The 2B5V54 requires a B series Split Taper Bushing. Ensure you select the correct bore size for your specific motor or fan shaft.
Is this sheave suitable for high-horsepower HVAC blowers?
Yes, the B5V series is specifically designed for high-capacity power transmission, supporting drives ranging from 5 to 125 horsepower depending on the configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
