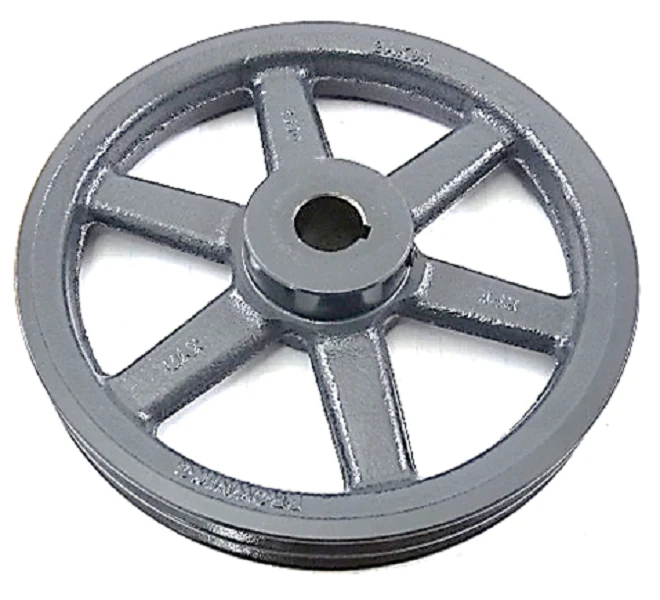

Browning 2AK94X1 Sheave
The Browning 2AK94X1 Sheave is a precision-engineered 9.25" outside diameter drive component designed for heavy-duty HVACR applications requiring reliable power transmission. Constructed from high-grade ASTM CLASS 30 cast iron, this two groove AK sheave is built for durability and vibration dampening in demanding environments. It features a 1" fixed bore with a standard keyway and setscrew, ensuring a secure fit on motor or fan shafts. This AK cast iron sheave is versatile, designed to be compatible with 3L, 4L, and A section belts. By utilizing a static balanced design, the 2AK94X1 minimizes spindle wear and improves the service life of bearings in belt-driven blowers and condensers. For contractors performing system retrofits or maintenance, this sheave provides the dimensional accuracy required to maintain precise pitch diameters and optimal belt tension, ensuring consistent CFM output and energy efficiency across the drive assembly.
- Dual Groove Design: Allows for increased torque transmission and redundancy in critical air handling systems.
- Cast Iron Construction: Provides superior heat dissipation and wear resistance compared to stamped steel alternatives.
- Multi-Belt Compatibility: Engineered to seat 3L, 4L, and A belts, offering flexibility for various drive configurations.
- Precision Machining: Ensures minimal runout and balanced rotation to protect motor bearings and reduce acoustic noise.
Common Questions
What is the pitch diameter for this sheave when using A belts?
When utilizing A section V-belts, the pitch diameter for the 2AK94X1 is approximately 9.00 inches, which is critical for calculating precise drive ratios.
Can this sheave be used in high-static pressure fan applications?
Yes, the Browning 2AK94X1 is frequently used in high-static HVAC applications where a fixed bore 2-groove pulley is required to handle the increased load of dual-belt drives.
Does this sheave require a specific bushing?
No, this specific model features a 1" fixed bore, meaning it is ready for direct installation on a 1-inch shaft without the need for additional split taper or QD bushings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
