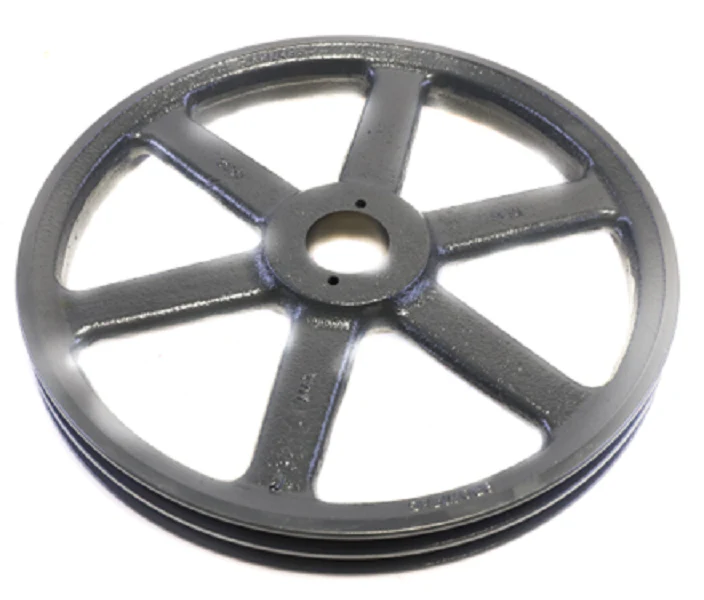

Browning 2AK124H Sheave
The Browning 2AK124H Sheave is a precision-engineered, dual-groove power transmission component designed for fractional horsepower (FHP) applications. Constructed from close-grain cast iron, this 2AK series sheave is statically balanced to ensure vibration-free operation in demanding HVACR environments. With a 12.25" outside diameter, it provides reliable performance for 3L, 4L, and A section V-belts. This bushed type sheave is specifically designed for use with H-series split taper bushings, allowing for a versatile range of bore sizes from 3/8" to 1-1/2". The datum diameter for A belts is 12.0", while the pitch diameter for 3L belts is 11.66", ensuring accurate speed ratios and torque transfer. Its rugged cast iron build and epoxy powder coating provide the durability needed for long-term service in air handling units and industrial blowers. Professional contractors rely on the Browning 2AK124H for its tight machining tolerances and seamless compatibility with standard H-bushing drive configurations.
Key Benefits- Dual-Groove Design: Supports increased power capacity and redundancy for critical fan and blower drives.
- Statically Balanced: Each unit is balanced at the factory to minimize mechanical vibration and extend bearing life.
- High Compatibility: Versatile A/B combination groove geometry accommodates 3L, 4L, and A section belts.
- Split Taper Mounting: Utilizes H-series bushings for a secure, concentric fit on the shaft that resists slipping.
- Industrial Durability: Machined from high-tensile cast iron to withstand the thermal and mechanical stresses of HVACR service.
What is the difference between the 2AK124H and a finished bore sheave?
The 2AK124H is a bushed-style sheave requiring an H-series bushing, which allows you to adapt the sheave to various shaft diameters, whereas finished bore models are fixed to one specific size.
Which belts are compatible with this sheave?
This sheave is designed for 4L or A belts and is also compatible with 3L belts. It is ideal for fractional horsepower drive systems.
Does this sheave include the H-series bushing?
No, the H-series bushing must be purchased separately to match your specific motor or blower shaft diameter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
