Browning 2695179 Groove Gauge

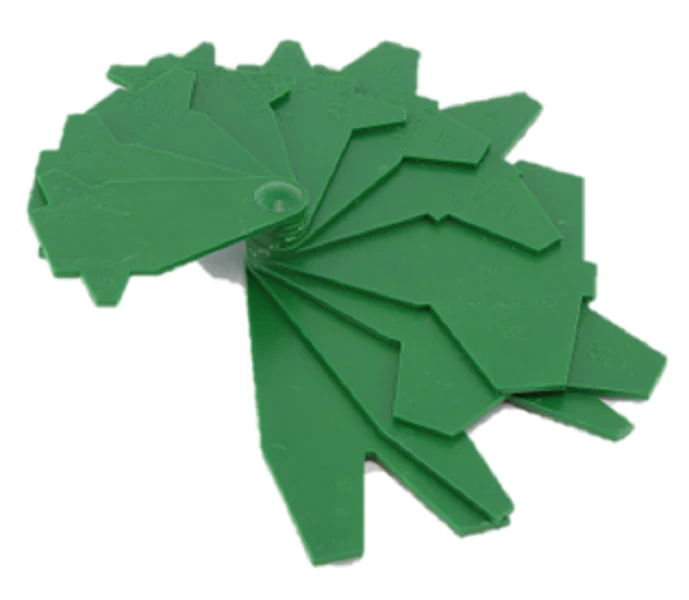

The Browning 2695179 Multi-tabbed Plastic Groove Gauge is a critical diagnostic tool for identifying sheave wear and ensuring the integrity of your belt drive systems. Designed for field technicians, this v-belt groove gauge allows for a precise visual inspection of pulley profiles to prevent premature belt failure and maintain optimal power transmission efficiency. As sheaves wear down—often by as much as 1/32 of an inch—belt life decreases and energy loss increases. This compact sheave measurement tool features silhouettes for A, B, 3V, 5V, 8V, C, D, and E belt sections, providing a comprehensive solution for checking standard and combination grooves.
Constructed from high-impact, durable plastic, this pulley wear gauge is lightweight and sized for portability in a technician’s toolkit. To use, simply match the belt section to the corresponding silhouette and select the tab based on the sheave\'s outside diameter. By checking for light gaps between the gauge and the groove wall, you can accurately determine when a sheave has reached its wear limit and requires replacement. Utilizing the Browning 2695179 ensures your belt drive system operates at peak efficiency while reducing unpredicted downtime caused by worn components.
Key Benefits:- Multi-tabbed design covers a wide range of belt profiles including classical and narrow wedge V-belts.
- Prevents belt slippage and energy loss by identifying worn pulley grooves before they impact performance.
- Includes belt forks to assist in identifying belt cross-sections when part numbers are no longer legible.
- Essential for preventative maintenance routines to extend the life of power transmission components.
- Durable plastic material resists shop chemicals and provides a cost-effective diagnostic solution.
- How do I know if my pulley needs to be replaced? Insert the matching tab of the Browning 2695179 into the groove; if you see a gap of 1/32" or more between the gauge and the sheave wall, the profile is worn beyond tolerance.
- Which belt sizes does this gauge support? This universal tool includes silhouettes for A, B, AB, 3V, 5V, 8V, C, D, and E sections, making it compatible with most industrial HVAC v-belt drives.
- Can this be used for variable pitch sheaves? While primarily designed for fixed pitch, the straight edges of the belt forks can be used to manually check the sidewall consistency of variable pitch pulleys.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
