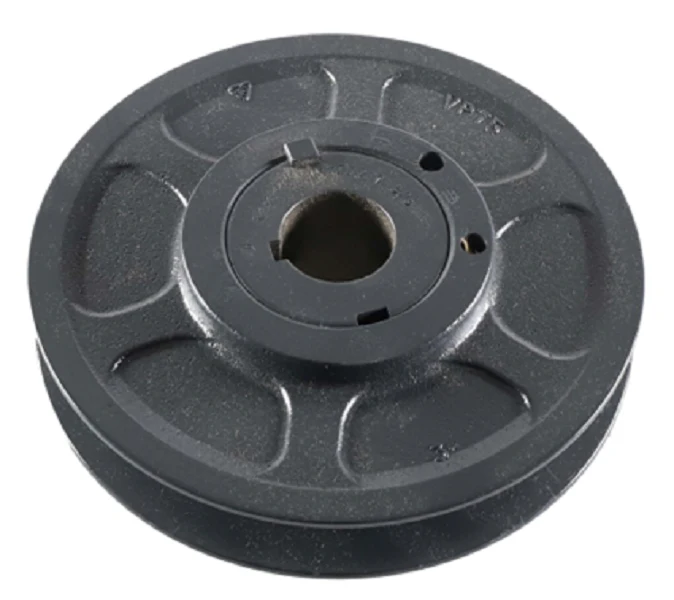

Browning 1VP75X13/8 Sheave

Browning 1VP75X13/8 Sheave

When you need precise speed control in your HVACR systems, the Browning 1VP75X13/8 Sheave is a robust solution. This single groove variable pitch sheave, constructed from durable cast iron, offers a 7.50" outside diameter and a fixed 1 3/8" bore. Its 5.9-7.4 variable pitch range allows for fine-tuning of driven speeds, crucial for optimizing airflow, static pressure, and motor efficiency in applications like fans, blowers, and pumps. Designed for compatibility with 4L, A, AX, 5L, B, BX, and BV belts, this sheave provides the flexibility to adjust system performance without the need for costly and time-consuming fixed sheave change-outs. Proper alignment and tensioning are key to maximizing its operational lifespan and preventing premature belt wear.

  • Key Benefits:
    • Adjustable Speed Control: Easily fine-tune driven equipment speed to meet specific operational requirements and optimize system performance.
    • Broad Belt Compatibility: Designed for use with a wide range of V-belts (4L, A, AX, 5L, B, BX, BV), ensuring versatility for various applications.
    • Durable Construction: Manufactured from cast iron for long-lasting reliability in demanding HVACR environments.
    • Optimized Efficiency: Allows for precise adjustments to maximize motor efficiency and control airflow/static pressure.

Common Questions:

  • How do I adjust the pitch diameter on this sheave?

    The variable pitch is adjusted by rotating the threaded angular faced discs. Moving them closer increases the pitch diameter and driven speed, while moving them apart decreases it. Always loosen setscrews before adjustment and re-torque afterward.

  • What are the signs of a worn sheave?

    Indicators include belts appearing stretched beyond take-up, premature belt wear, belts turning over in the groove, or a gap of 1/32" or more when using a groove gauge. Worn sheaves can significantly reduce drive efficiency and shorten belt life.

  • Is sheave alignment critical for variable pitch drives?

    Absolutely. Proper sheave alignment is essential to prevent rapid belt and sheave wear, reduce vibration, and ensure consistent power transmission. Misalignment can lead to differential driving and premature component failure.

This item does not qualify for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

$89.27

Original: $255.06
