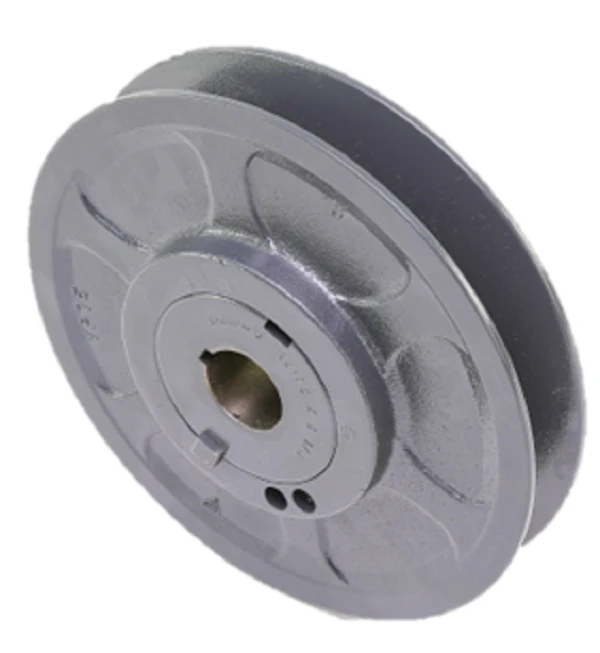

Browning 1VP75X 1 1/8 Sheave
The Browning 1VP75X 1 1/8 is a heavy-duty, single-groove variable pitch sheave designed for precise airflow tuning in commercial HVACR systems. Engineered from high-grade cast iron, this pulley features a 7.50" outside diameter and a 1 1/8" fixed bore with a standard keyway for secure shaft mounting. It provides an adjustable pitch diameter range of 5.9" to 7.4", allowing technicians to fine-tune fan speed and system static pressure without changing drive components. This component is compatible with A and B section belts, including 4L, AX, 5L, BX, and BV profiles, offering versatile integration for blowers and air handlers. The precision-machined threads ensure smooth adjustment and minimal vibration, extending the service life of drive belts and motor bearings in demanding environments. For contractors managing HVAC belt drive maintenance, the 1VP75X offers the durability required for consistent power transmission performance.
Key Performance Benefits
- Precision Speed Adjustment: The variable pitch design allows for exact CFM balancing in ventilation systems.
- Broad Belt Compatibility: Supports 4L, A, AX, 5L, B, BX, and BV belts for maximum field flexibility.
- Rugged Cast Iron Construction: High-tensile strength material prevents sheave wear and maintains groove integrity under load.
- Fixed Bore Stability: The 1-1/8 inch bore ensures a concentric fit on motor shafts, reducing harmonic vibration.
Common Questions
What is the adjustment range for the Browning 1VP75X?
This sheave provides a variable pitch diameter range from 5.9" to 7.4", depending on the specific belt section used.
Does this sheave require a specific bushing?
No, the 1VP75X 1 1/8 features a fixed bore and does not require a separate Browning split taper bushing.
Can I use this with high-torque cogged belts?
Yes, this sheave is fully compatible with AX and BX cogged belts, which are often used to improve efficiency in HVACR motor drives.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
