Browning 1VP71X 1 3/8 Sheave

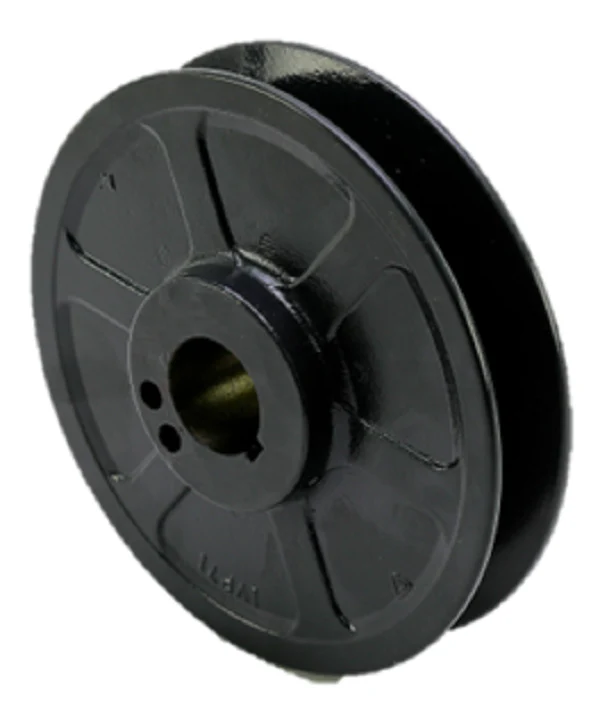

The Browning 1VP71X 1 3/8 Sheave is a precision-engineered variable pitch sheave designed for commercial HVACR air handling units requiring precise fan speed adjustment. Constructed from high-grade cast iron, this single-groove component features a 7.10" outside diameter and is configured for a 1-3/8" fixed bore mounting. The adjustable pitch diameter ranges from 4.9" to 6.4", allowing technicians to fine-tune system CFM and static pressure requirements during balancing. Engineered for compatibility with 4L, A, AX, 5L, B, BX, and BV belts, this sheave utilizes a threaded pitch adjustment mechanism to ensure consistent wall contact and drive efficiency. The heavy-duty casting provides superior dampening of drive vibrations, essential for extending the service life of fan motors and bearings in high-static applications. This industrial-grade sheave is the standard replacement for residential and light commercial blower assemblies requiring durable, belt-driven power transmission components.
Key Benefits for Contractors
- Precision Speed Control: The variable pitch range of 4.9" to 6.4" enables exact airflow calibration to meet specific system design criteria.
- Broad Belt Compatibility: Versatile groove design accommodates multiple belt profiles including A/B section V-belts and high-torque BX cogged belts.
- Durable Construction: High-tensile cast iron body resists wear and maintains balance under continuous operational loads.
- Seamless Integration: The 1-3/8" fixed bore ensures a direct-fit replacement on standard NEMA motor shafts without the need for additional bushings.
- Optimized Performance: Enhances HVAC drive efficiency by providing a stable, non-slip contact surface for the drive belt.
Common Questions
How do I adjust the pitch on the Browning 1VP71X?
To adjust the pitch, loosen the set screws on the moving flange and rotate the flange on the threaded hub. This changes the pitch diameter, which directly impacts the fan RPM. Always ensure the set screws are tightened on the flat of the hub threads after adjustment.
Can this sheave be used with cogged belts?
Yes, this sheave is fully compatible with AX and BX cogged belts, which are often preferred in HVACR motor drives for their higher heat dissipation and efficiency compared to standard wrapped belts.
What happens if the pitch is set too wide?
Opening the pitch too wide decreases the pitch diameter, effectively slowing down the driven component. Technicians must verify that the belt does not bottom out in the groove, which would cause slippage and premature V-belt wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
