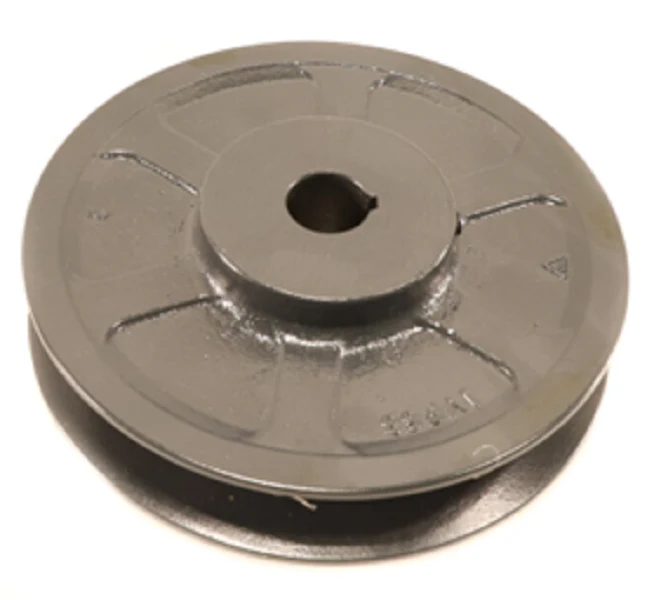

Browning 1VP68X7/8 Sheave
The Browning 1VP68X7/8 Sheave is a rugged, cast iron variable pitch pulley engineered for precision performance in industrial fan and blower applications. Featuring a 7/8" fixed bore and a 6.55" outside diameter, this single groove sheave allows for fine-tuned RPM adjustments by varying the pitch diameter from 4.9" to 6.4". Designed for versatility, the 1VP68X7/8 is compatible with 4L, A, AX, 5L, B, BX, and BV belts, ensuring seamless integration into existing HVACR drive systems. This heavy-duty component utilizes high-grade cast iron construction to withstand significant torsional stress while maintaining balance and reducing vibration. For contractors managing airflow requirements, this adjustable motor pulley provides the mechanical advantage needed to calibrate static pressure and system CFM. Its robust design ensures reliable power transmission in demanding commercial environments where durability and precise drive ratios are non-negotiable.
Key Benefits
- Precision Speed Control: Allows for incremental RPM adjustments to match exact system airflow requirements.
- Broad Belt Compatibility: Supports a wide range of belt profiles including A, B, and 5L series for maximum field flexibility.
- Durable Cast Iron Build: Engineered for high-load applications with superior wear resistance compared to standard pulleys.
- Secure Fixed Bore: The 7/8" bore ensures a stable, keyed fit to the motor shaft, preventing slippage under high torque.
- Optimized Heat Dissipation: The cast iron material helps manage thermal loads during continuous operation cycles.
Common Questions
How do I adjust the pitch diameter on the Browning 1VP68X7/8?
Loosen the set screw to manually rotate the adjustable flange; once the desired pitch diameter between 4.9" and 6.4" is reached, retighten the screw to lock the setting.
What is the maximum RPM rating for this variable pitch sheave?
This sheave is balanced for standard HVACR motor speeds; however, always verify that the peripheral speed does not exceed 6,500 feet per minute for safe operation.
Can I use a BX cogged belt with this sheave?
Yes, the 1VP68 series is designed to accommodate both standard and cogged belts, including BX and AX profiles, for improved efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
