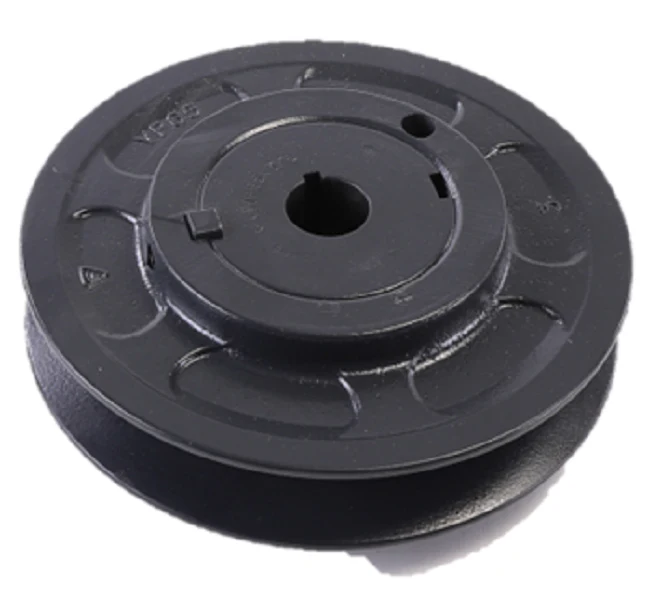

Browning 1VP65X 7/8 Sheave
The Browning 1VP65X 7/8 Sheave is a heavy-duty, single-groove variable pitch sheave designed for precision airflow tuning in commercial HVACR systems. Engineered from high-grade cast iron, this drive component features a 6.50" outside diameter and a 7/8" fixed bore with a standard keyway. Its adjustable pitch diameter ranges from 4.9" to 6.4", allowing technicians to fine-tune fan speeds to meet specific CFM requirements. This versatile sheave is compatible with multiple belt cross-sections, including 4L, A, AX, 5L, B, BX, and BV, making it a critical part for maintaining static pressure balance in air handling units. The 1VP65X utilizes a threaded adjustment mechanism for precise incremental changes, ensuring optimal power transmission and belt alignment. Built for durability in high-torque environments, this cast iron pulley minimizes vibration and extends the service life of motors and blower bearings in demanding industrial applications.
Key Benefits for HVACR Technicians
- Precision Speed Adjustment: Allows for exact fan speed modulation to calibrate system performance and balance air distribution.
- Broad Belt Compatibility: Versatile design works with A and B section V-belts, reducing the need for multiple stock components.
- Industrial-Grade Casting: High-tensile cast iron construction provides superior heat dissipation and wear resistance compared to stamped steel alternatives.
- Secure Shaft Attachment: The 7/8" fixed bore ensures a rigid fit on standard motor shafts, preventing slippage during high-torque startups.
Common Questions & Technical Insights
How do I adjust the pitch diameter on the Browning 1VP65X?
To adjust the pitch, loosen the set screws holding the movable flange, rotate the flange to the desired position to change the effective diameter, and ensure the set screws are re-seated on the machined flats of the hub.
What is the maximum RPM for this cast iron sheave?
Standard Browning variable pitch sheaves are typically rated for 3600 RPM; however, technicians should always verify the balance limits if operating at high frequencies with a VFD.
Which belts provide the best performance with this 7/8 fixed bore pulley?
For high-demand HVAC applications, cogged V-belts (AX or BX) are recommended as they offer better flexibility around the sheave's minimum diameter and improved heat dissipation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
