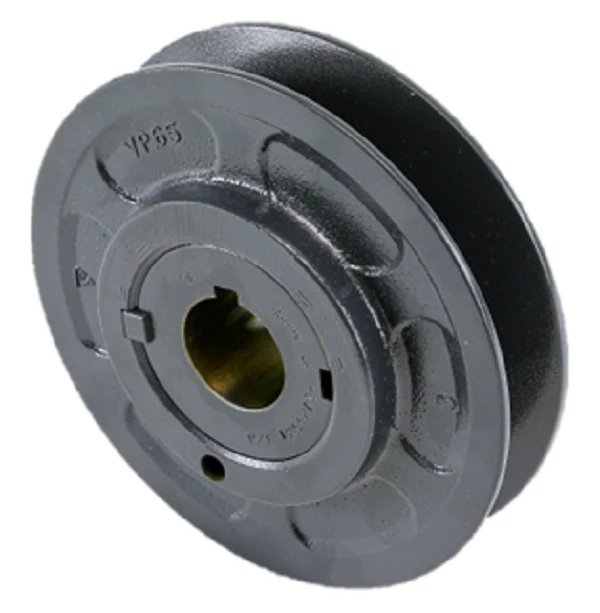

Browning 1VP65X 1 3/8 Sheave
The Browning 1VP65X 1 3/8 is a heavy-duty, cast iron variable pitch sheave designed for precise speed modulation in industrial and HVACR drive systems. This single groove VP sheave features a 6.50" outside diameter and is engineered for high-torque applications requiring a 1 3/8" finished bore with keyway. The adjustable pitch range of 4.9" to 6.4" allows technicians to fine-tune fan speeds and blower performance on-site, ensuring optimal CFM without changing out fixed pulleys. Constructed for durability, it accommodates a broad range of V-belt profiles, including 4L, A, AX, 5L, B, BX, and 5V sections. By utilizing a threaded barrel and female bore design with flat surfaces for secure setscrew mating, this Browning variable speed pulley provides a slip-resistant fit on the motor shaft. Ideal for mechanical power transmission in AHUs and air-handling equipment, it ensures consistent drive ratios and reduced vibration under varying load conditions.
Key Benefits- Versatile Compatibility: Supports multiple belt sections (A, B, 5V, 4L, 5L) for simplified inventory and field flexibility.
- Durable Cast Iron Construction: High-grade cast iron sheave material resists wear and maintains belt alignment in demanding environments.
- Precision Tuning: Provides a 4.9-6.4 pitch diameter range to accurately balance airflow and system performance.
- Secure Shaft Mounting: Features a 1 3/8" finished bore with a standard 5/16" x 5/32" keyway and setscrew for maximum grip.
What is the maximum horsepower rating for the Browning 1VP65X?
This series of variable pitch sheaves is typically rated for drive systems up to 25 HP, though specific capacity depends on the belt section and RPM used.
Which belt sections are compatible with this 1VP65X sheave?
It is designed to work with 4L, A, AX, 5L, B, BX, and 5V belt profiles, making it a highly adaptable component for various motor drives.
How do I adjust the pitch on this variable speed pulley?
Adjustment is made by loosening the setscrews and rotating the adjustable flange on the threaded barrel; moving the discs closer increases the pitch diameter and driven speed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
