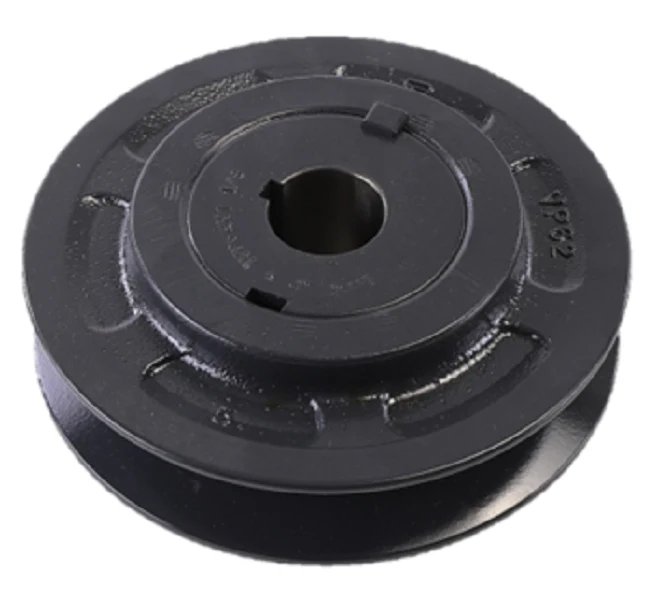

Browning 1VP62X 1 1/8 Sheave
For HVACR contractors managing airflow and system static pressure, the Browning 1VP62X 1 1/8 Sheave is a high-performance variable pitch pulley engineered for precision speed adjustment. This single groove variable pitch sheave features a 5.95" outside diameter and is manufactured from high-grade cast iron, providing superior vibration dampening and heat dissipation compared to lighter aluminum alternatives. The 1 1/8 inch fixed bore comes finished with a standard 1/4" x 1/8" keyway, ensuring a secure, slip-free interface on standard motor shafts. Designed for heavy-duty drive applications up to 25 HP, the 1VP62X allows for adjustable pitch diameter ranges (typically 4.4" to 5.9" depending on belt section), enabling technicians to fine-tune fan RPMs to meet specific CFM requirements. This component is cross-compatible with 4L, A, AX, 5L, B, BX, and 5V belts, making it a versatile solution for balancing blowers and pumps without the need for multiple fixed-diameter sheaves.
Key Benefits:- Durable Cast Iron Construction: Minimizes wear and resists groove deformation under high-torque industrial and HVAC loads.
- Wide Belt Compatibility: Versatile groove design supports 4L/A/AX and 5L/B/BX/5V belt sections for simplified inventory management.
- Precision Dynamic Balancing: Reduces system vibration, extending the service life of motor bearings and fan assemblies.
- Infinite Speed Adjustment: Allows for granular control of driven speeds by altering the pitch diameter through manual turn adjustments.
- How do I adjust the pitch on a Browning 1VP62X sheave? Loosen the setscrew on the adjustable flange and rotate the flange on the threaded barrel to increase or decrease the pitch diameter, then re-tighten the setscrew onto the flat surface.
- Is this sheave compatible with 5V belts? Yes, the 1VP62X 1 1/8 is engineered to accept 4L, A, 5L, B, and 5V belt series.
- Does this sheave require a separate bushing? No, this is a fixed-bore sheave with a specified 1 1/8" finished bore and keyway already machined.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
