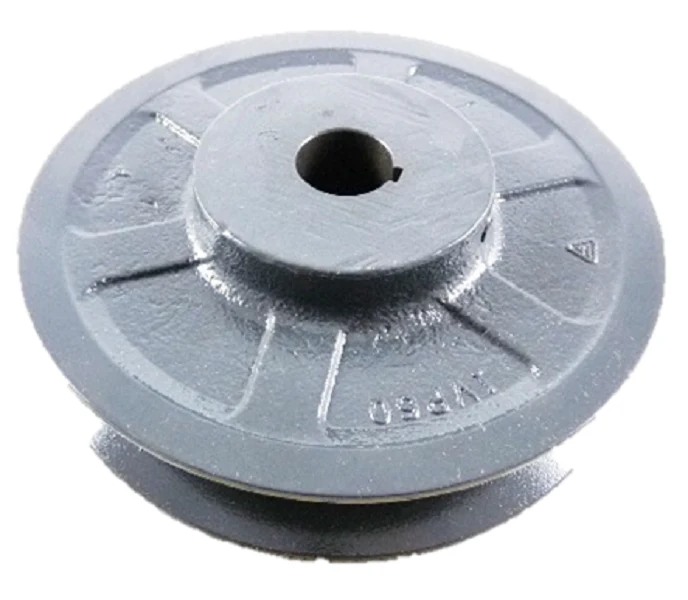

Browning 1VP60X7/8 Sheave
The Browning 1VP60X7/8 Sheave is a high-grade cast iron variable pitch pulley engineered for precision performance in HVACR air handling units and industrial drive systems. Featuring a 6.00" outside diameter and a 7/8" fixed bore, this single-groove component allows for precise adjustable pitch diameter settings ranging from 4.4" to 5.9". This versatility is essential for fine-tuning fan speeds and balancing airflow without replacing the entire drive. Built for heavy-duty service, this sheave is compatible with 4L, A, AX, 5L, B, BX, and BV belts, providing a wide range of application flexibility. The 1VP series utilizes a threaded adjustment mechanism to ensure consistent pitch control, reducing vibration and extending belt life. Professionals choose this Browning V-belt sheave for its robust construction and ability to maintain critical tolerances under high-torque conditions, ensuring optimal power transmission in demanding mechanical environments.
Key Benefits for Contractors
- Variable Pitch Range: Provides 4.4" to 5.9" adjustment to accurately dial in blower RPM.
- Broad Belt Compatibility: Designed for use with A and B series belts, including notched AX and BX profiles.
- Durable Cast Iron Construction: Offers superior wear resistance and heat dissipation compared to stamped steel alternatives.
- Fixed 7/8" Bore: Features a standard 7/8 inch finished bore with keyway and setscrew for secure shaft mounting.
- Dynamic Balancing: Minimizes noise and vibration, protecting motor bearings and improving system longevity.
Frequently Asked Questions
How do I adjust the pitch on the Browning 1VP60X7/8?
Loosen the setscrew on the adjustable flange and rotate the flange on the threaded hub to achieve the desired pitch diameter, then re-tighten the setscrew on the flat portion of the hub threads.
Which belt types provide the best grip with this sheave?
While compatible with standard 4L and 5L belts, using AX or BX cogged belts provides better wrap and efficiency in high-torque HVAC applications.
Can this sheave be used for speed increases?
Yes, by adjusting the pitch diameter toward the 5.9" maximum, you can increase the driven shaft speed, provided the motor amperage remains within nameplate limits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Browning 1VP60X7/8 Sheave
The Browning 1VP60X7/8 Sheave is a high-grade cast iron variable pitch pulley engineered for precision performance in HVACR air handling units and industrial drive systems. Featuring a 6.00" outside diameter and a 7/8" fixed bore, this single-groove component allows for precise adjustable pitch diameter settings ranging from 4.4" to 5.9". This versatility is essential for fine-tuning fan speeds and balancing airflow without replacing the entire drive. Built for heavy-duty service, this sheave is compatible with 4L, A, AX, 5L, B, BX, and BV belts, providing a wide range of application flexibility. The 1VP series utilizes a threaded adjustment mechanism to ensure consistent pitch control, reducing vibration and extending belt life. Professionals choose this Browning V-belt sheave for its robust construction and ability to maintain critical tolerances under high-torque conditions, ensuring optimal power transmission in demanding mechanical environments.
Key Benefits for Contractors
- Variable Pitch Range: Provides 4.4" to 5.9" adjustment to accurately dial in blower RPM.
- Broad Belt Compatibility: Designed for use with A and B series belts, including notched AX and BX profiles.
- Durable Cast Iron Construction: Offers superior wear resistance and heat dissipation compared to stamped steel alternatives.
- Fixed 7/8" Bore: Features a standard 7/8 inch finished bore with keyway and setscrew for secure shaft mounting.
- Dynamic Balancing: Minimizes noise and vibration, protecting motor bearings and improving system longevity.
Frequently Asked Questions
How do I adjust the pitch on the Browning 1VP60X7/8?
Loosen the setscrew on the adjustable flange and rotate the flange on the threaded hub to achieve the desired pitch diameter, then re-tighten the setscrew on the flat portion of the hub threads.
Which belt types provide the best grip with this sheave?
While compatible with standard 4L and 5L belts, using AX or BX cogged belts provides better wrap and efficiency in high-torque HVAC applications.
Can this sheave be used for speed increases?
Yes, by adjusting the pitch diameter toward the 5.9" maximum, you can increase the driven shaft speed, provided the motor amperage remains within nameplate limits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
