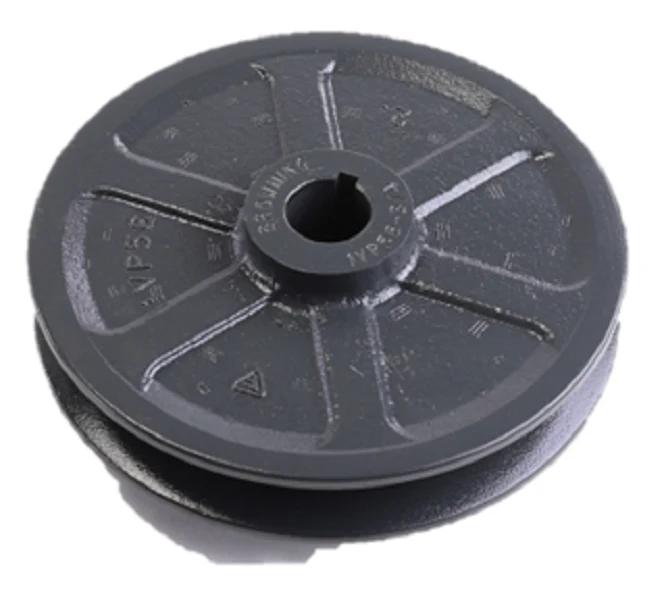

Browning 1VP56X3/4 Sheave
The Browning 1VP56X3/4 Sheave is a high-grade cast iron variable pitch pulley designed for precision speed adjustment in HVAC fan drives and industrial blowers. This single-groove component features a 5.35" outside diameter and a 3/4" fixed bore, making it a standard choice for technicians tuning airflow on 1-5 HP motors. Engineered for versatility, it accommodates a wide range of belt profiles, including 3L, 4L, A, AX, 5L, B, and BX belts. The 3.9" to 5.4" datum diameter range allows for granular adjustment, ensuring peak system efficiency and proper static pressure balance. Manufactured with high-tensile cast iron, this variable pitch sheave ensures long-term durability and resistance to wear in high-duty cycle environments. By utilizing a Browning 1VP series pulley, contractors can eliminate the need for multiple fixed sheaves during the commissioning process, simplifying drive synchronization and motor load management.
Key Performance Benefits
- Precision Speed Tuning: Facilitates exact RPM adjustments to meet specific CFM requirements.
- Broad Belt Compatibility: Works seamlessly with A, B, and 3L/4L/5L fractional horsepower belts.
- Heavy-Duty Construction: High-quality cast iron prevents premature groove wear and vibration.
- Fixed Bore Stability: The 3/4" bore ensures a secure fit on standard motor shafts for reduced run-out.
- Enhanced System Balance: Optimized for balancing static pressure in light commercial air handlers.
Technical FAQ
How do I adjust the pitch on this Browning sheave?
Loosen the setscrews on the moving flange and rotate the flange on the threaded hub to reach the desired datum diameter, then re-tighten the setscrews on the flat of the hub.
What belt size works best with the 1VP56X3/4?
While it supports multiple profiles, it is most commonly paired with 4L or A-section belts for standard fan applications and 5L or B-section belts for higher torque requirements.
Can this pulley be used with a 5/8" shaft?
No, this specific model is a 3/4" fixed bore sheave. For a 5/8" shaft, you would require the 1VP56 x 5/8 variant.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
