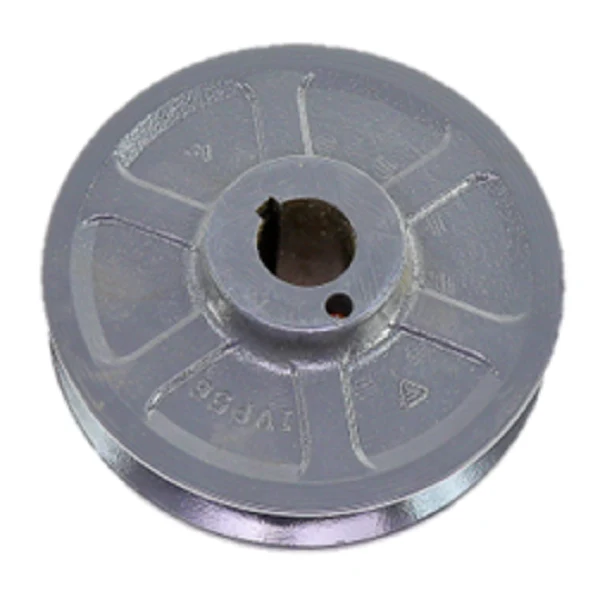

Browning 1VP56X1 Sheave
The Browning 1VP56X1 Sheave is a precision-engineered variable pitch cast iron sheave designed for light-duty HVAC applications and industrial fan drives. Featuring a 1-inch fixed bore and a 5.35-inch outside diameter, this single-groove component allows for precise airflow adjustments by modulating the pitch diameter between 3.9 and 5.4 inches. Built from high-grade cast iron for durability and vibration dampening, the 1VP56X1 is compatible with 3L, 4L, A, AX, 5L, B, and BX belts, providing versatile drive ratios for belt-driven blowers and motor assemblies. Technical contractors rely on the Browning VP series for its reliable threaded adjustment mechanism, which ensures consistent tension and alignment during high-torque startup. This sheave is static balanced to reduce bearing wear and extend the service life of the motor shaft. Integrate this component into your air handling unit maintenance to achieve optimal static pressure and motor amperage draw.
Key Benefits
- Optimized Airflow Control: Wide 3.9-5.4 inch pitch range allows for granular tuning of blower speeds.
- Maximum Compatibility: Engineered to support both A and B section belts, reducing inventory requirements for service vans.
- Exceptional Durability: Rugged cast iron construction provides superior heat dissipation compared to stamped steel alternatives.
- Precision Bore: The 1" fixed bore with standard keyway ensures a secure mechanical fit on NEMA motor shafts.
Common Questions
What belts can I use with the 1VP56X1?
This sheave is compatible with 3L, 4L, A, AX, 5L, B, and BX belts. It is commonly used in HVAC belt replacement for 4L/A and 5L/B drive configurations.
How do I adjust the pitch on this sheave?
Loosen the set screw, rotate the moveable flange to the desired pitch diameter (between 3.9" and 5.4"), and retighten the set screw to lock the adjustment in place.
Is this sheave balanced?
Yes, these sheaves are static balanced to minimize harmonic vibration and prevent premature wear on the motor bearings and fan assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
