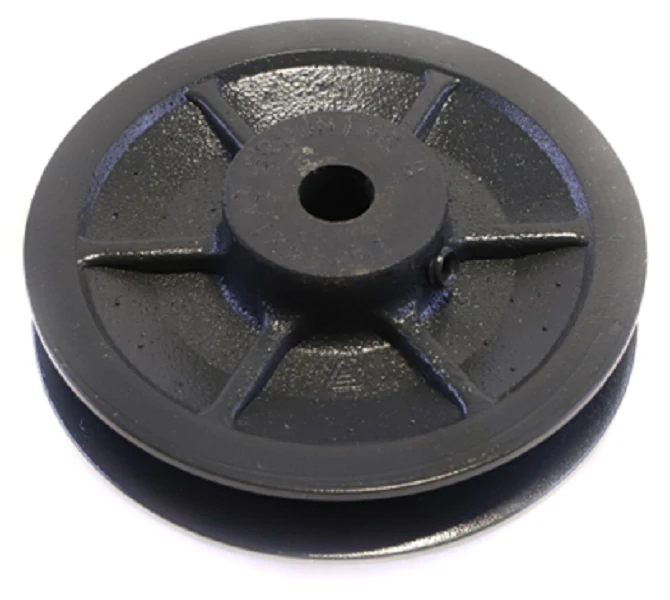

Browning 1VP44X1/2 Sheave
The Browning 1VP44X1/2 Sheave is a high-grade variable pitch pulley engineered for precise performance in HVACR belt-drive systems. Constructed from rugged cast iron, this single groove sheave provides the structural integrity required for heavy-duty fan, blower, and pump applications. It features a 1/2" fixed bore designed for a secure fit on standard motor shafts without the need for additional bushings. With an outside diameter (OD) of 4.15", this component allows for a pitch diameter range of 2.7" to 4.2", enabling technicians to fine-tune system RPM for optimal airflow or fluid movement.
This VP series sheave is highly versatile and compatible with 3L, 4L, A, AX, 5L, B, and BX belt sections. The 1VP44 series is specifically favored by contractors for its ease of adjustment; by rotating the moving parts of the sheave, you can increase or decrease the pitch diameter to meet exact system static pressure requirements. The balanced cast iron design minimizes vibration, extending the life of both the motor bearings and the driven equipment.
Key Benefits- Broad Belt Compatibility: Interfaces seamlessly with cross-sections ranging from 3L and A (4L) to B (5L) and their notched cogged equivalents (AX, BX).
- Variable Pitch Precision: Allows for field-adjustable speed ratios to balance air systems or bridge the gap between fixed pulley sizes.
- Industrial Cast Iron: Provides superior heat dissipation and wear resistance compared to lightweight stamped or aluminum alternatives.
- Direct Fit: The 1/2-inch finished bore simplifies installation on fractional horsepower motors commonly found in air handlers and condensers.
- What is the maximum horsepower rating for this sheave? The Browning VP series sheaves are generally intended for use with motors up to 25 HP, depending on the specific belt section and drive configuration.
- How do I adjust the pitch diameter? Loosen the setscrew on the moving part of the sheave and rotate the threaded flange to reach the desired pitch, then re-tighten the setscrew on the flat of the hub.
- Does this sheave require a keyway? No, this specific model (1VP44X1/2) is a finished bore type typically secured via setscrews, often used on shafts without a traditional keyway.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $83.67
-65%$83.67
$29.28Browning 1VP44X1/2 Sheave
The Browning 1VP44X1/2 Sheave is a high-grade variable pitch pulley engineered for precise performance in HVACR belt-drive systems. Constructed from rugged cast iron, this single groove sheave provides the structural integrity required for heavy-duty fan, blower, and pump applications. It features a 1/2" fixed bore designed for a secure fit on standard motor shafts without the need for additional bushings. With an outside diameter (OD) of 4.15", this component allows for a pitch diameter range of 2.7" to 4.2", enabling technicians to fine-tune system RPM for optimal airflow or fluid movement.
This VP series sheave is highly versatile and compatible with 3L, 4L, A, AX, 5L, B, and BX belt sections. The 1VP44 series is specifically favored by contractors for its ease of adjustment; by rotating the moving parts of the sheave, you can increase or decrease the pitch diameter to meet exact system static pressure requirements. The balanced cast iron design minimizes vibration, extending the life of both the motor bearings and the driven equipment.
Key Benefits- Broad Belt Compatibility: Interfaces seamlessly with cross-sections ranging from 3L and A (4L) to B (5L) and their notched cogged equivalents (AX, BX).
- Variable Pitch Precision: Allows for field-adjustable speed ratios to balance air systems or bridge the gap between fixed pulley sizes.
- Industrial Cast Iron: Provides superior heat dissipation and wear resistance compared to lightweight stamped or aluminum alternatives.
- Direct Fit: The 1/2-inch finished bore simplifies installation on fractional horsepower motors commonly found in air handlers and condensers.
- What is the maximum horsepower rating for this sheave? The Browning VP series sheaves are generally intended for use with motors up to 25 HP, depending on the specific belt section and drive configuration.
- How do I adjust the pitch diameter? Loosen the setscrew on the moving part of the sheave and rotate the threaded flange to reach the desired pitch, then re-tighten the setscrew on the flat of the hub.
- Does this sheave require a keyway? No, this specific model (1VP44X1/2) is a finished bore type typically secured via setscrews, often used on shafts without a traditional keyway.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
