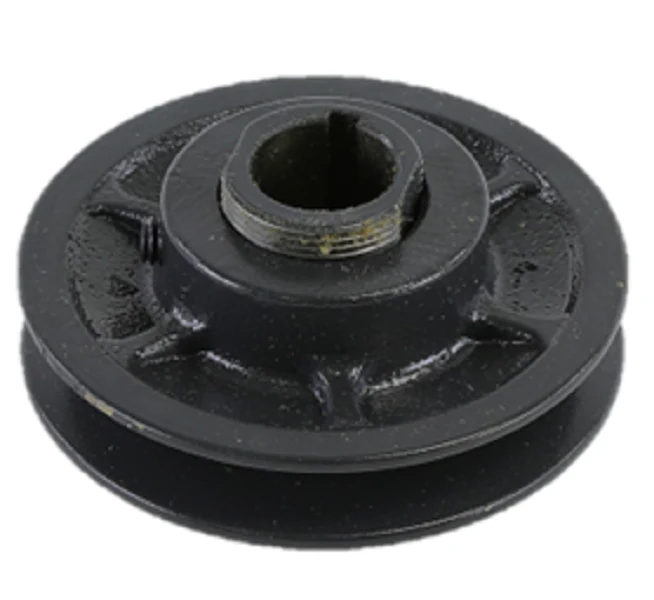

Browning 1VP40X7/8 Sheave
The Browning 1VP40X7/8 Sheave is a professional-grade variable pitch sheave engineered for precise speed adjustment in HVAC and industrial blower applications. Constructed from high-durability cast iron, this single groove sheave features a 7/8" finished bore and a 3.75" outside diameter, providing a versatile adjustable pitch diameter range of 2.3" to 3.8". Designed for seamless mechanical power transmission, it is compatible with a wide array of belt cross-sections including 3L, 4L, A, AX, 5L, B, and BX belts. The 1VP series utilizes a threaded barrel and disc design that allows technicians to fine-tune fan speed control by simply adjusting the number of turns open, ensuring optimal airflow and system balancing without the need for multiple fixed pulleys. Equipped with hollow head setscrews for secure shaft mounting, this component is the industry standard for FHP variable pitch sheaves used in centrifugal fans, pumps, and ventilators.
Key Benefits- Precise Tuning: Variable pitch design allows for exact CFM adjustments in centrifugal fan and blower systems.
- Universal Belt Compatibility: Robust groove geometry supports 3L, 4L, A, AX, 5L, B, and BX belt profiles.
- Industrial Durability: Machined cast iron construction resists wear and ensures reliable torque transfer under heavy-duty service.
- Direct Bore Fit: 7/8 inch finished bore with standard setscrew placement allows for immediate installation on standard motor shafts.
What is the adjustment range for the Browning 1VP40X7/8?
This sheave provides a pitch diameter range of 2.3" to 3.8", allowing you to vary the driven speed of your equipment by adjusting the gap between the angular faced discs.
Which belt types can I use with this variable pitch pulley?
It is designed for high versatility, accommodating 3L, 4L (A/AX), and 5L (B/BX) section V-belts commonly found in HVAC systems.
How do I adjust the speed using this sheave?
By loosening the setscrew and rotating the adjustable disc on the threaded barrel, you change how high the belt rides in the groove. Closing the discs increases the pitch diameter and output speed, while opening them decreases it.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $61.73
-65%$61.73
$21.61Browning 1VP40X7/8 Sheave
The Browning 1VP40X7/8 Sheave is a professional-grade variable pitch sheave engineered for precise speed adjustment in HVAC and industrial blower applications. Constructed from high-durability cast iron, this single groove sheave features a 7/8" finished bore and a 3.75" outside diameter, providing a versatile adjustable pitch diameter range of 2.3" to 3.8". Designed for seamless mechanical power transmission, it is compatible with a wide array of belt cross-sections including 3L, 4L, A, AX, 5L, B, and BX belts. The 1VP series utilizes a threaded barrel and disc design that allows technicians to fine-tune fan speed control by simply adjusting the number of turns open, ensuring optimal airflow and system balancing without the need for multiple fixed pulleys. Equipped with hollow head setscrews for secure shaft mounting, this component is the industry standard for FHP variable pitch sheaves used in centrifugal fans, pumps, and ventilators.
Key Benefits- Precise Tuning: Variable pitch design allows for exact CFM adjustments in centrifugal fan and blower systems.
- Universal Belt Compatibility: Robust groove geometry supports 3L, 4L, A, AX, 5L, B, and BX belt profiles.
- Industrial Durability: Machined cast iron construction resists wear and ensures reliable torque transfer under heavy-duty service.
- Direct Bore Fit: 7/8 inch finished bore with standard setscrew placement allows for immediate installation on standard motor shafts.
What is the adjustment range for the Browning 1VP40X7/8?
This sheave provides a pitch diameter range of 2.3" to 3.8", allowing you to vary the driven speed of your equipment by adjusting the gap between the angular faced discs.
Which belt types can I use with this variable pitch pulley?
It is designed for high versatility, accommodating 3L, 4L (A/AX), and 5L (B/BX) section V-belts commonly found in HVAC systems.
How do I adjust the speed using this sheave?
By loosening the setscrew and rotating the adjustable disc on the threaded barrel, you change how high the belt rides in the groove. Closing the discs increases the pitch diameter and output speed, while opening them decreases it.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
